A textbook on the locomotive and the air brake (1901)
International Correspondence Schools · Scranton, Pa., International textbook co · leaf 256

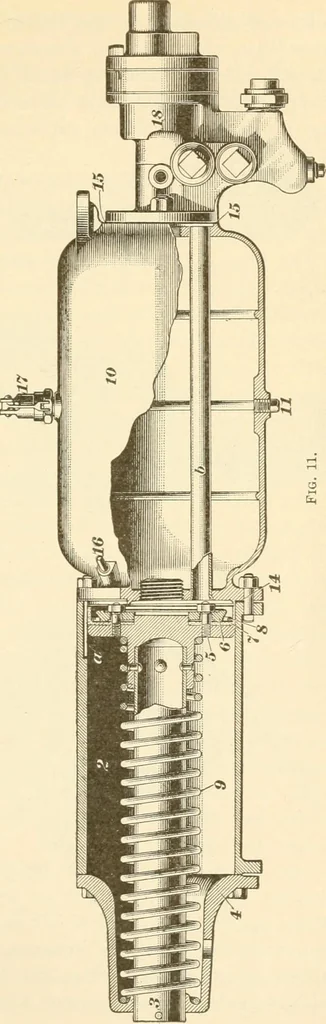

cted to the cross-head 10, are controlled bythe cylinder piston, thelevers being moved everytime the piston moves. Inthe freight e q u i j) m e n t,Fig. 11, a push rod is at-tached to one end of thepiston in the brake cylin-der, the outer end (notshown in the figure) beingconnected to the… … 30 THE NEW YORK AIR BRAKE. §15 points of difference in the freight and passenger equipmentsother than those already described, and a description of theparts in the one will apply equally to those of the other. Thevarious parts of the triple valve have already been describedand its mode of working…
Locomotives · Locomotive boilers · Railroad cars
Internet Archive · Northeastern University Library · Public Domain Mark 1.0. Free to use for anything.
