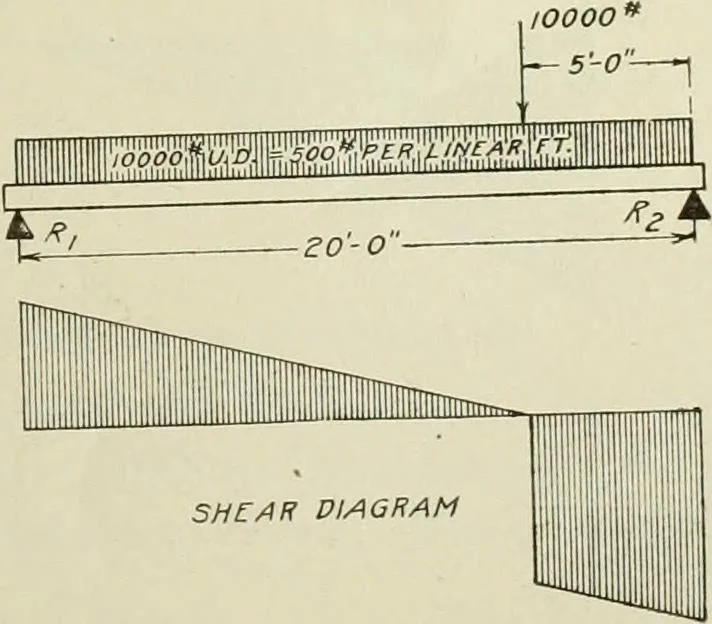

Simple Beam with Variable LoadJ … Fig. S2 SHEAR DIAGRAM Simple Beam with Uniformly Distribu-ted Load over Entire Length and OneConcentrated Load 90 STEEL CONSTRUCTION Therefore 11 = 250,00020 = 12,500 # Rt = 20,000 - 12,500 = 7500 #Maximum shear is 12,500#. Zero shear occurs under theload P. Hence this is the point of maximum…
