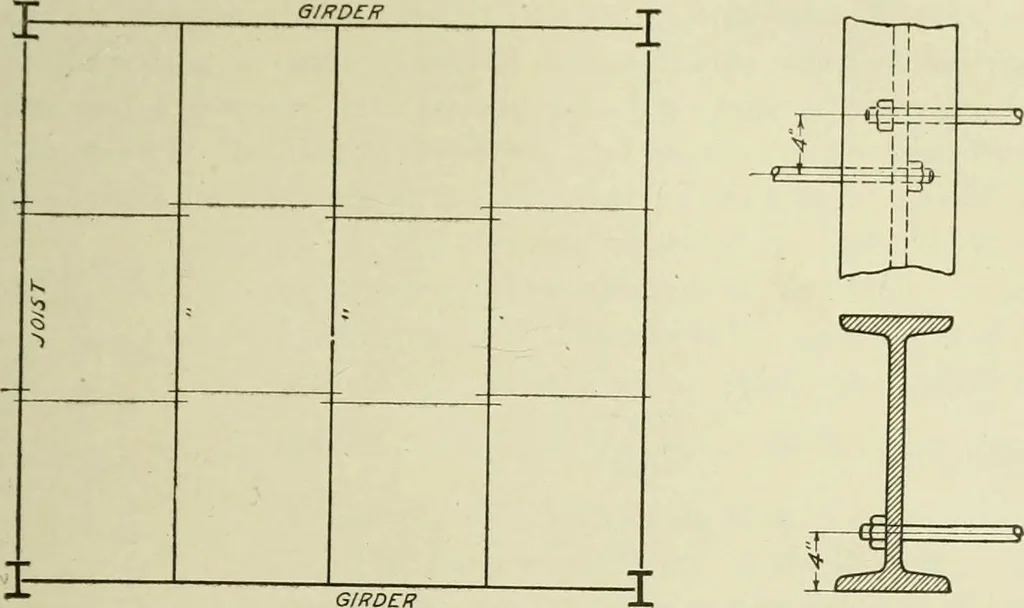

ur angles or of a short piece of I-beam or channel, Fig.104. If the beams are set close together, the holes must be reamed.and turned bolts must be used in order to get an efficient con- STEEL CONSTRUCTION 12!) nection. If the beams are set with four inches or more clearancebetween the flanges, the… … Fig. 105. Lay-out Showing Tic-Rod Connections Between Joists Tie Rods. A common form of fireproof floor construction isthe hollow tile arch between steel joists spaced from 5 feet to 7 feetapart. The arch exerts a thrust sidewise on the beams and wouldspread the beams apart and cause the arch to…
