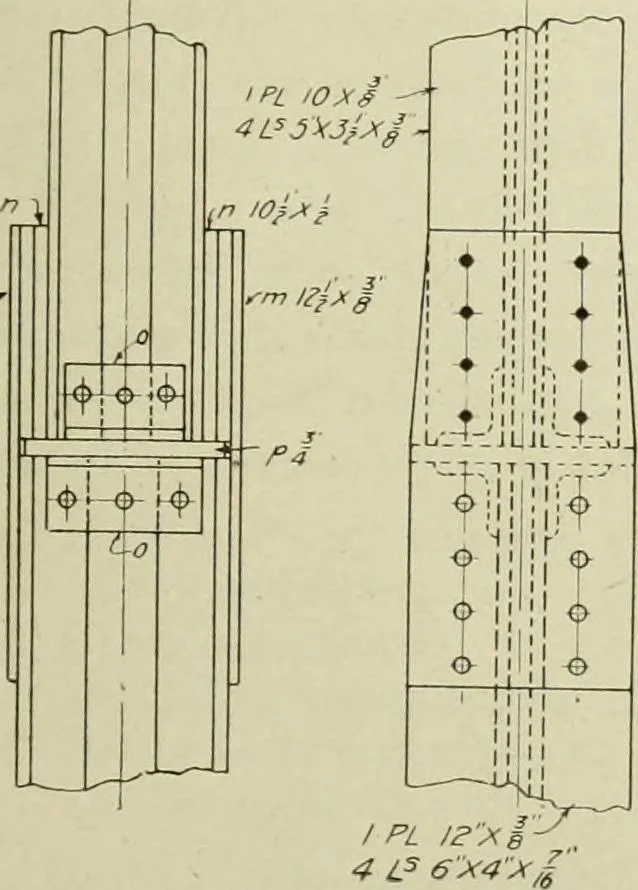

e so that the splice plates will not in- terfere with the beam connec-tions; usually IS inches is enoughspace. The strength of the spliceplates may vary from a nominalamount to the full strength of thecolumn, generally the former, itbeing considered that the spliceplates serve only to hold the… … 146. Splice in a Plate and Angle Colun STM101j CONSTRUCTION 217 As the splice plates are not designed to carry stress, the loadmust be transmitted by direct hearing of the upper column on thelower. This recpiires that the ends he milled exactly at right anglesto the axis of the columns and that the…
