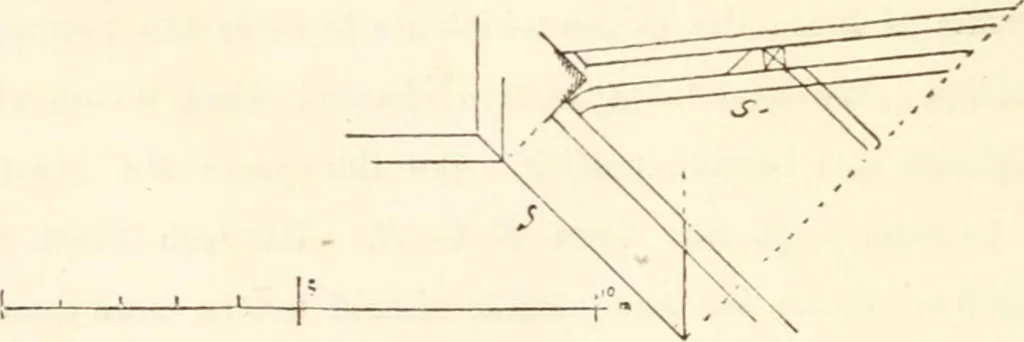

Fig. 4S. place the two rafters A on two sleepers joined by a tie-beamwhich will pass under the floor; on these rafters, a tie-beamB; then, to unite the rafters with the tie-beam, the braces C. THE CARPENTRY WORK. 213 At the extremity of this tie-beam will be the purlins D. Themain rafters E will…
