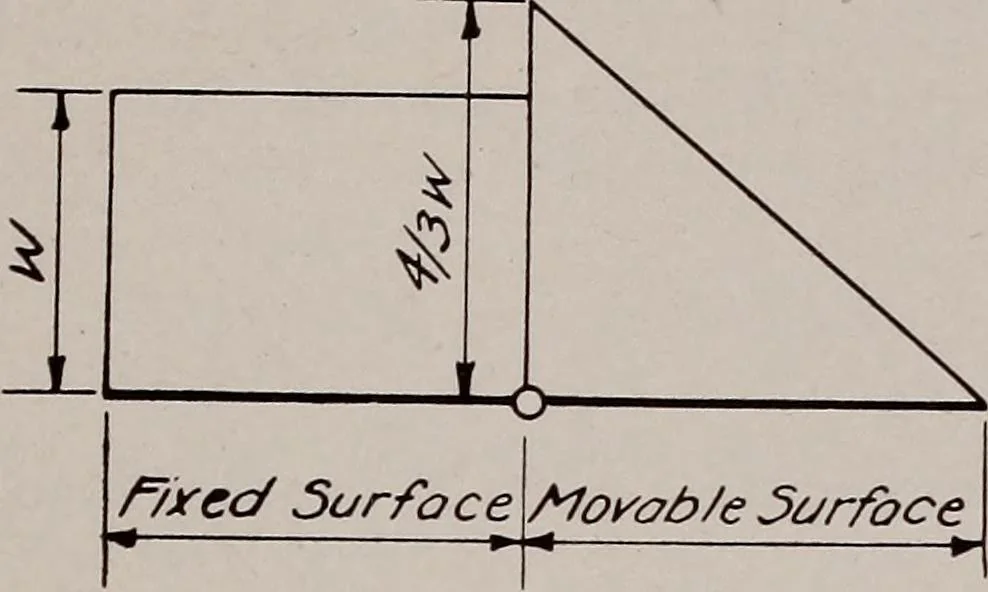

178 Art. 127 Calculation of Moments … Fig. 107. Load Distribution Between the Fixed and Movable Surfaces Calculation of Unit Loads. I. Elevator. Area of elevators = 16.7 sq. ft. Area of stabilizer = 12.5 sq. ft. Let w equal unit load on stabilizer. 4 w12.5 wH X—X16.7= (12.5 + 16.7) 35 = 1020 lbs. 3 2 w = 43.3 lbs. per sq. ft.2/3 w =…
