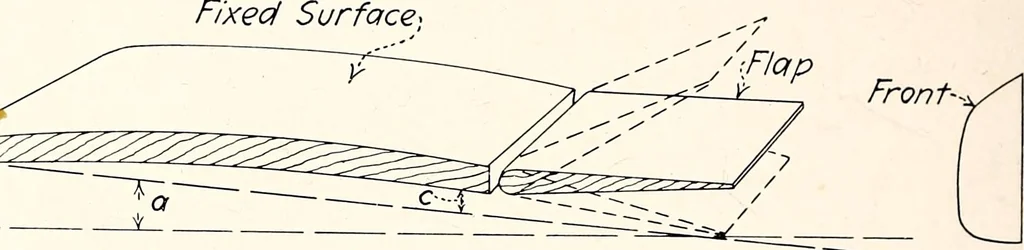

d a separate surface called a wing flap is hinged in this spaceto the rear spar of the wing. By a mechanism described later thesewing flaps are moved in opposite directions. At the rear of the fuselage, where we have the tail structure, wefind a fixed horizontal surface called the stabilizer, to… … -^^^^^^ When Flap is fumed down, the entire unit is a Axis- surface witli a camber c and an incidence b BalancedRudder By moving the hinged portions up or down the air flow is modified,so that the fixed and hinged portion together form a surface in whichthe camber and also the angle of incidence…
