Structural analysis and design of airplanes (1920)
United States. Army. Air Corps · [Washington] · leaf 234

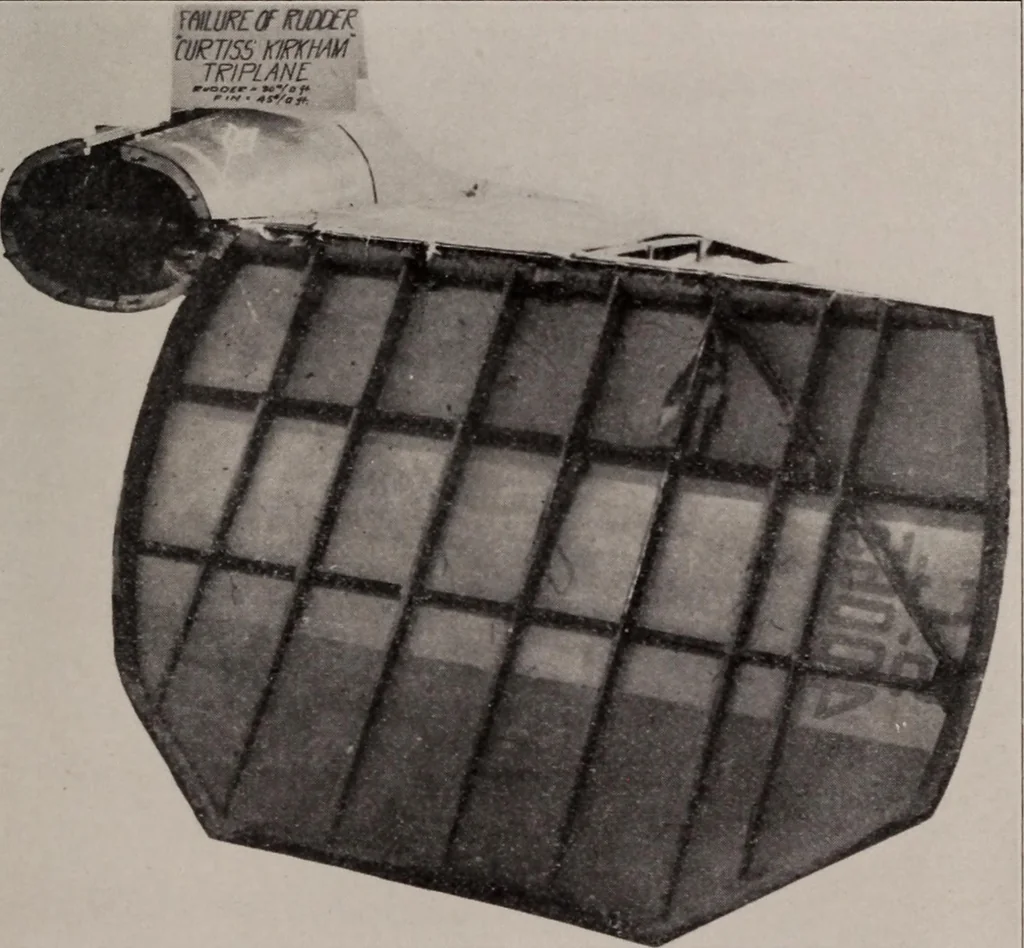

a Fig. 140. Stabilizer Rib on Curtiss Kirkham curtissKmmvf TFIPLANt »~Ojr .».»/» ft … Fig. 141. Internal Construction of Curtiss Kirkham 18-T Rudder 215 Control Surfaces Art. 147 a small part of the weight of a surface, the addition of two or three ofthem will often considerably increase its strength and rigidity withoutadding appreciably to the weight. The diagonal tube running up…
Airplanes
