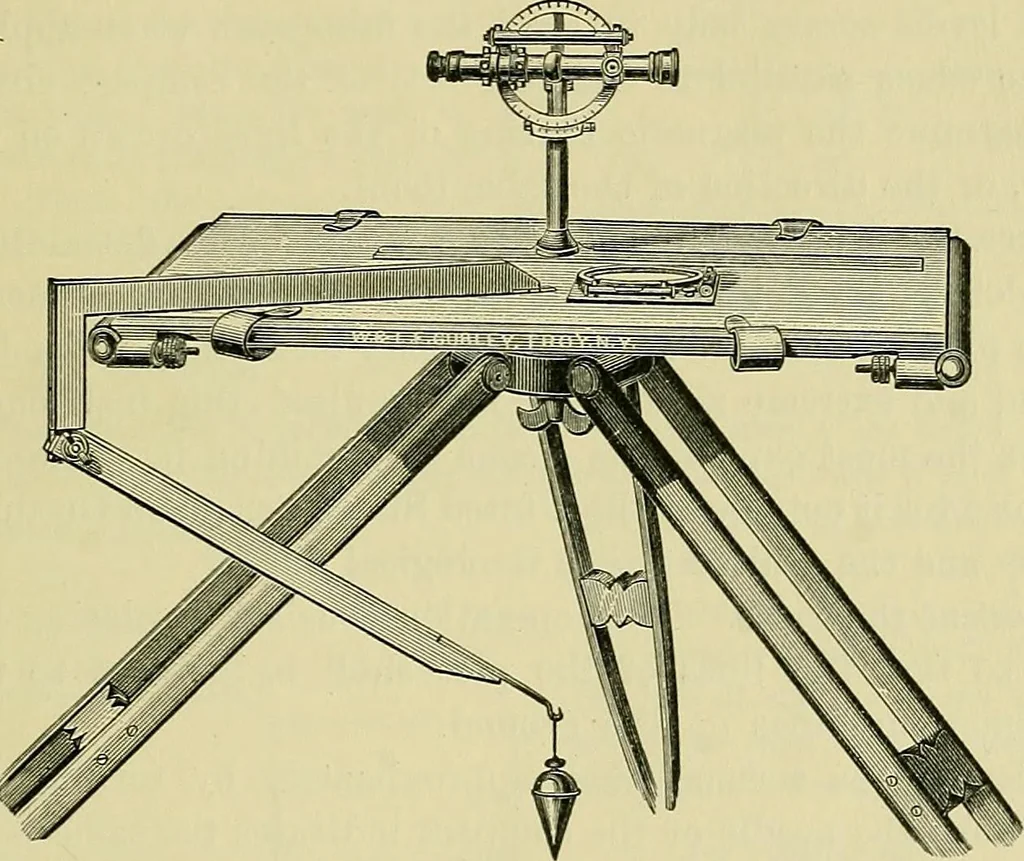

adjacent stations ofthe field. Find the difference between the sum of the hind-sights and the sum of the foresights. What should thisdifference equal ? SECTION VIII THE PLANE TABLE Description and Uses. The plane table, an approved form ofwhich is shown in Fig. 23, consists mainly of a drawingboard… … Fig. 23. The Plane Table 42 SURVEYING The board is provided with rollers or clamps or both, forkeeping the paper secure and even. The plumbing arm hasits end brought to a point which, however placed on thepaper, is directly above the corresponding point on the grounddetermined by the plummet. The…
