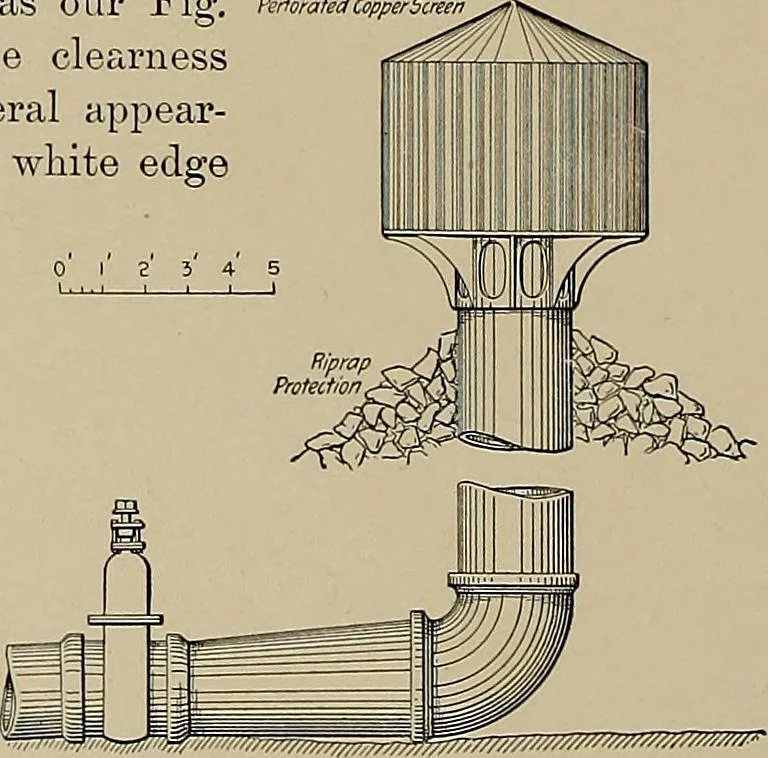

Side Elevation. shading, Fig. 62. a treatmentwhich all illustrations ac-companying the presentchapter have received. Where a curved por-tion adjoins a straight part, as for instance Ptan shown in Fig. 60, the best Fi£- 6a way to proceed is to throw in the shading of the former with thecompasses…
