Technology of textile design. Being a practical treatise on the construction and application of weaves for all textile fabrics, with minute reference to the latest inventions for weaving (1888)
Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia, Pub. by the author [etc.]; London, S. Low, Marston, Searle & Rivington, limited · leaf 184

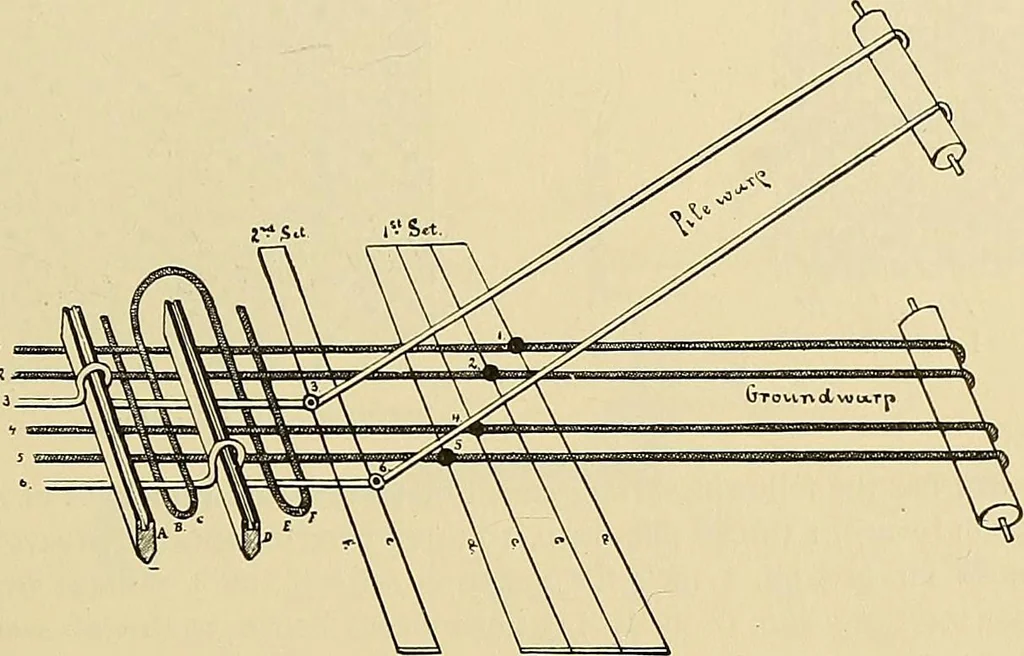

ofharness (indicated at the right-hand side). Diagram Fig. 808 illustrates the section of a fabric interlaced on weave Fig. 806. Bothground warp-threads, as working at the right and left, are indicated by dotted lines. The pile-warp indicated in full black is shown in the terry and velvet effect… … Fig. 811. Each pile warp-thread is drawn on a separate harness, as shown in Fig. 810. Diagram Fig. Siiillustrates the method of operation in weaving a fabric with the weave just given. 2 picksground B, C, E, F; i pick for inserting wire A, D. In pick A the harness / raises warp-thread3 ; in pick D…
