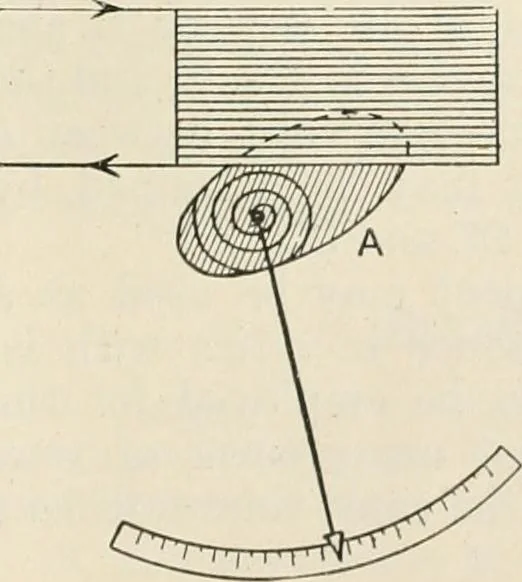

ft iron instrumentis shown in Fig. 809. An oval-shapedpiece of soft iron sheet A is pivoted ata point to the left of the axis of thesolenoid carrying the current. When the current flows, the soft iron is magnetised in such a manner that the force between it and the coil tends to draw the iron into… … Fig. 809.—Soft iron ammeter. 874 MAGNETISM AND ELECTRICITY chap. is not circular but is flat, just sufficient clearance for tbe soft ironsheet A being allowed. In the soft iron instruments, the current passes directly throughthe solenoid, no shunt being used. For heavy currents, a few turnsof thick…
