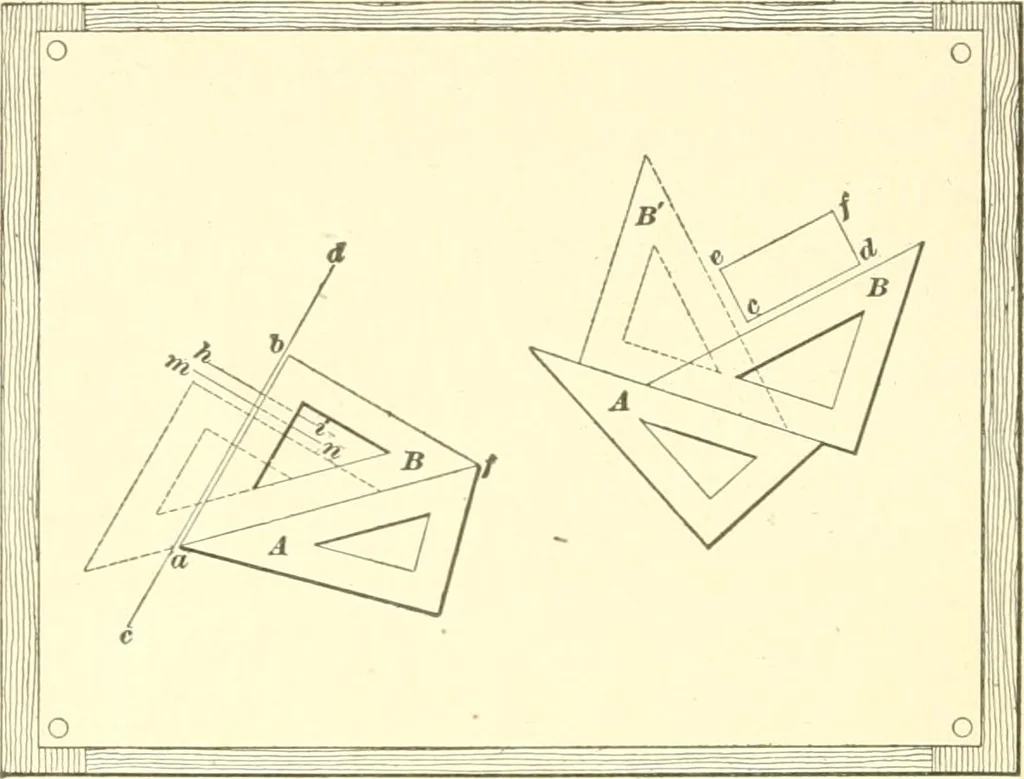

Fig. 99.Let cd be the given line (shown at the left-hand side). Placeone of the shorter edges, as ah, of the triangle B so that it willcoincide with the hne c d; then, keeping the triangle in thisposition, place the triangle A so that its long edge will comeagainst the long edge of B. Now, holding… … Fig. 99. show the position of the triangle B Avlien moved along theedge of A. 135. The right-hand portion of Fig. 99 shows anothermethod of accomplishing the same result, and illustrates howthe triangles may be used for drawing a rectangular figure,when the sides of the figure make an angle with…
