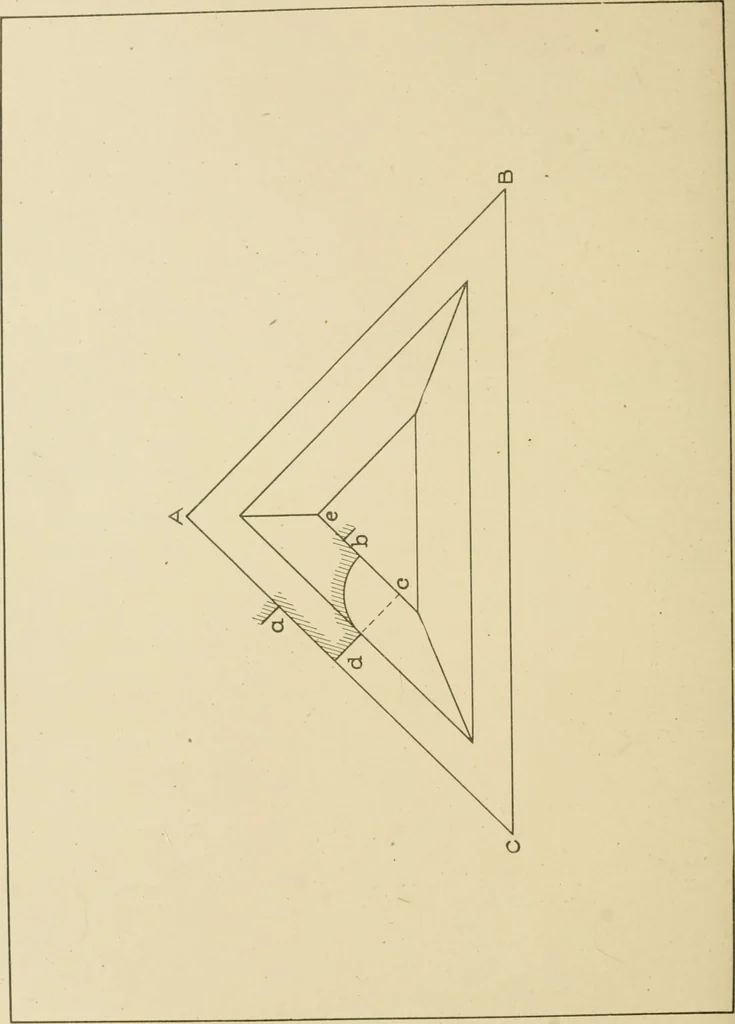

Fig. 358. ner arcs at a and I. Take the stretchout of the quarter-circle from1 to 5 in elevation in Fig. 357, and place it on the arc a a as shownfrom 1 to 5. Step this off four times, as shown by 5, 5, and 5.From J draw a line through 5, intersecting the inner and outer arcsat T and II. Then will…
