A textbook on the locomotive and the air brake (1901)
International Correspondence Schools · Scranton, Pa., International textbook co · leaf 246

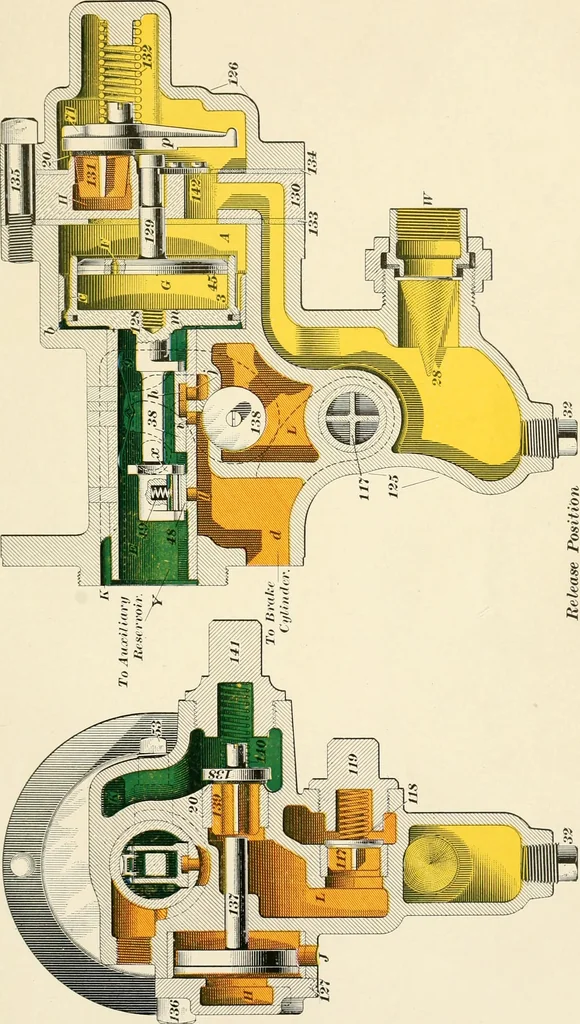

§15 THE NEW YORK AIR BRAKE. 25 it can be op orated from the engine in the ordinary manner.When the handle is turned so as to be parallel to, or in linewith the pipe, the brake on that car is cut out, or is inoperative.Fig. 7 shows the quick-action triple valve connected to thebrake cylinder, this…
Locomotives · Locomotive boilers · Railroad cars
