A textbook on the locomotive and the air brake (1901)
International Correspondence Schools · Scranton, Pa., International textbook co · leaf 43

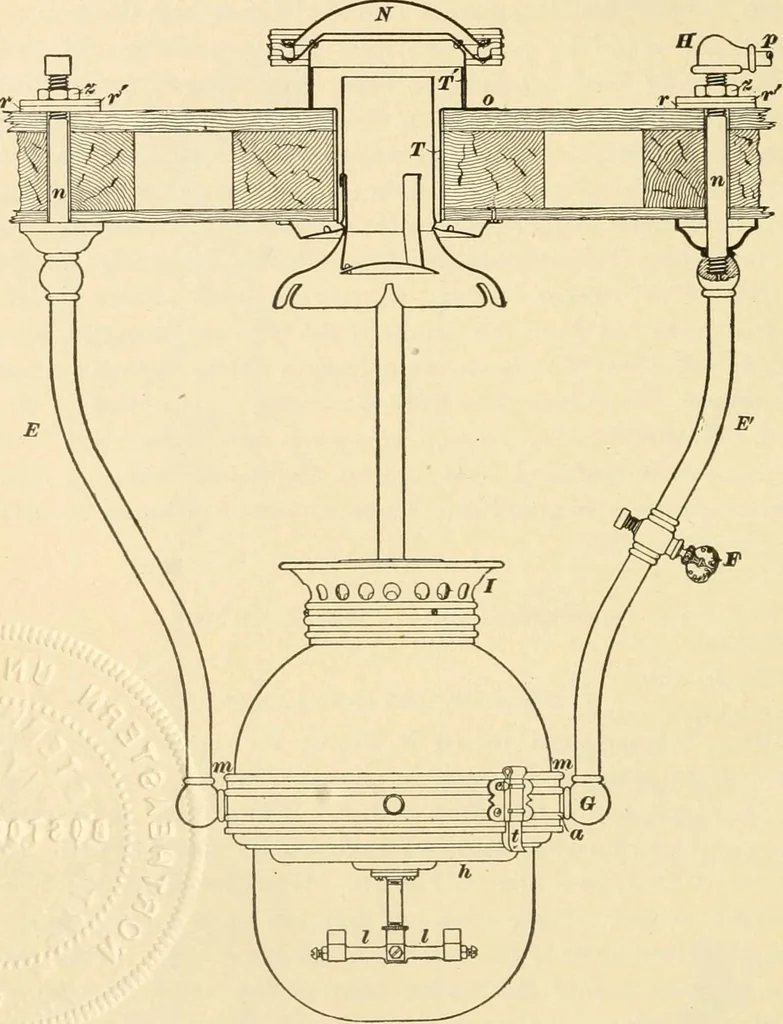

d on both ends of the gas arm, butit is not necessary for the plain arms. 31. Putting Ijamp in Place.—Fig. 24 shows how thelamp should be put uj). Place the rubber washer r over thetop of the nipple and then the iron washer r on top of r, andtighten up with the locknut z. A little putty should be… … Fig. 22. Caps, as shown, are then screwed on to the ends ofthe nipples connecting with the three blank arms. Be careful to see that all the gas ways in the lamp areperfectly gas-tight; they should all be tested by suction justbefore fastening the lamp up in postion. See also that all the §12 CAR…
Locomotives · Locomotive boilers · Railroad cars
