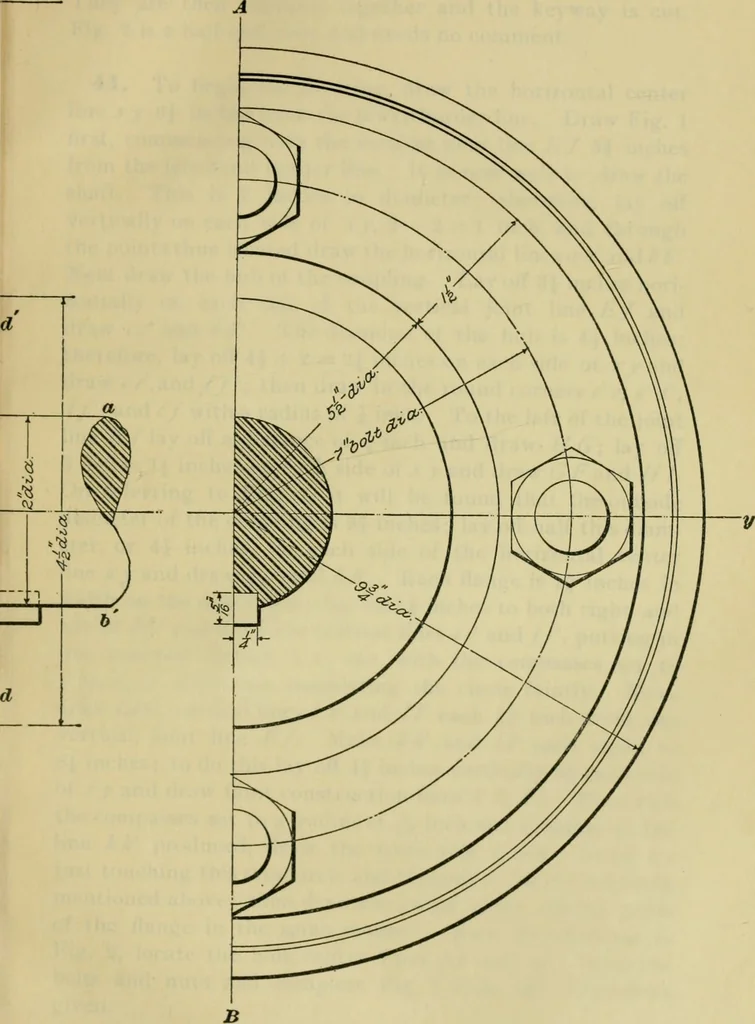

-_7/ JLOVF 2c, J593. For notice of copyright, see page il DUPLINB ZSize. … Fvq e ediately following the title page. JOM// SMITH, CLASS H^ 4529. § U MECHANICAL DRAWING 25 They are then clamped together and the keyway is cut.Fig. 2 is a half-end view and needs no comment. 41. To begin the drawing, draw the horizontal centerline xj G| inches from the lower border line. Draw…
