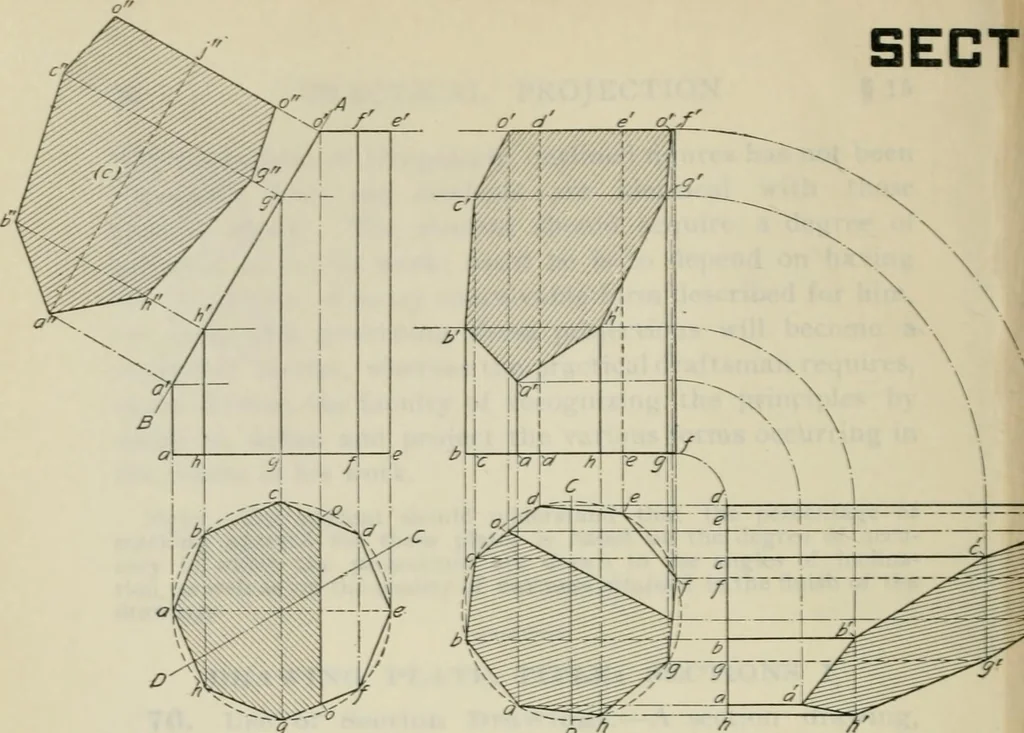

view of the object pro-jected. The outline of this surface, therefore, will depend onthe form of the object, the number of surfaces intersected bythe plane, and the angle of inclination of the cutting plane. To project the views of a solid in which a new surface isthus presented, it is necessary to… … 9 D f^J (b) PROBLEM /6.
