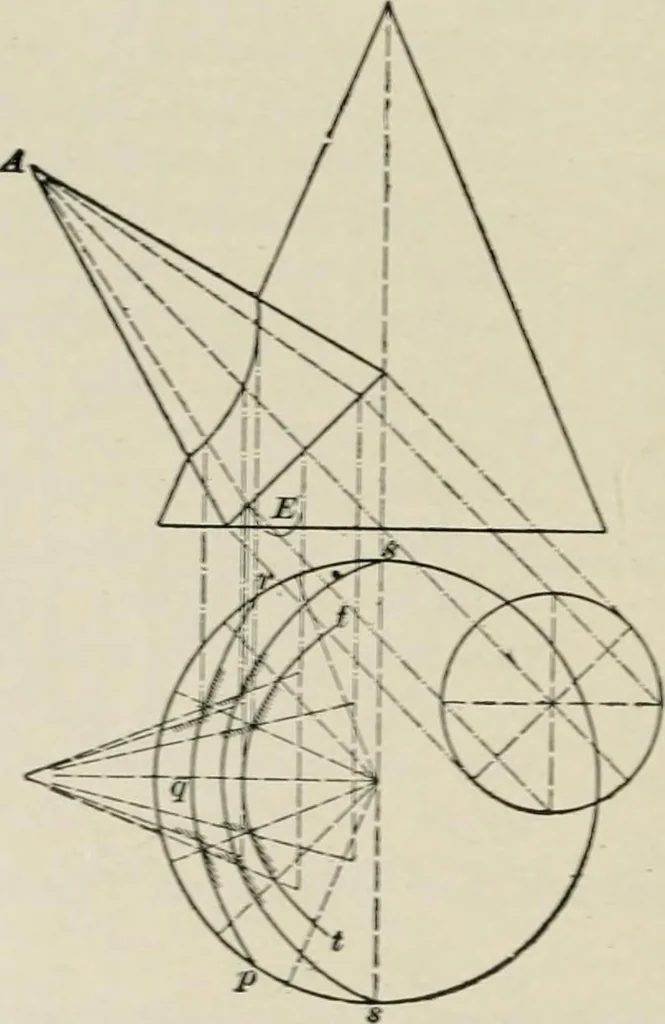

of the cuttingplane A E\ s s and t tare found as above de-scribed, the section linesbeing indicated in thefigure by short cross-hatching. Project the sideelevation as in formerproblems. The student may at thecompletion of the drawingon the plate erase all theconstruction lines exceptthose… … §15 PRACTICAL PROJECTION 99 PROBLEM 27 100. To i>roject views of a sphere intei*sected bya cylinder. When the position of these two solids is such that the axisof the cylinder passes through the center of the sphere, asshown in perspective in Fig. 55, the line of intersectionis shown in a right…
