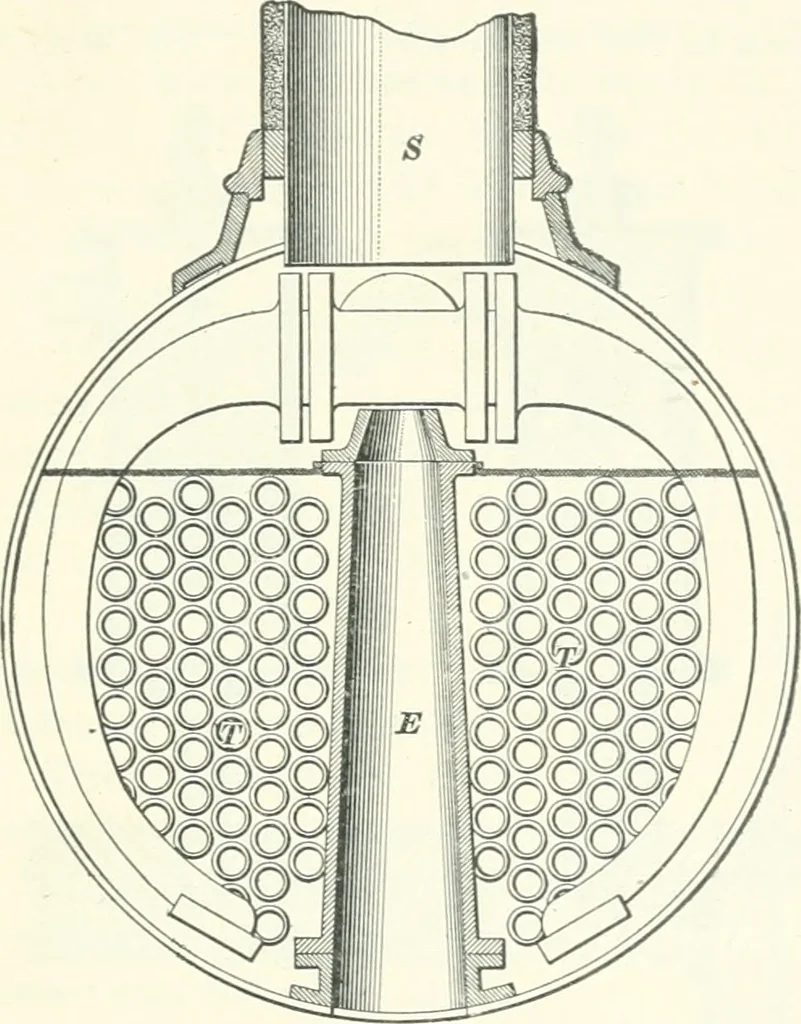

s admitting steamto the passages C, //, K. This steam draws water from Gthrough the opening surrounding H and discharges itthrough K with such a high velocity that it rushes past PNEUMATICS. 435 the opening T into the nozzle M and thence into theboiler. THE LOCOMOTIVE BLAST. 1077. Fig. 204 shows… … Fig. 204.exhaust steam has a pressure of about two pounds above theatmosphere, and rushes through the exhaust pipe E and upthe smokestack S with a very high velocity, taking the airout with it, and producing a partial vacuum in the space infront of the tubes. No air can get in this space…
