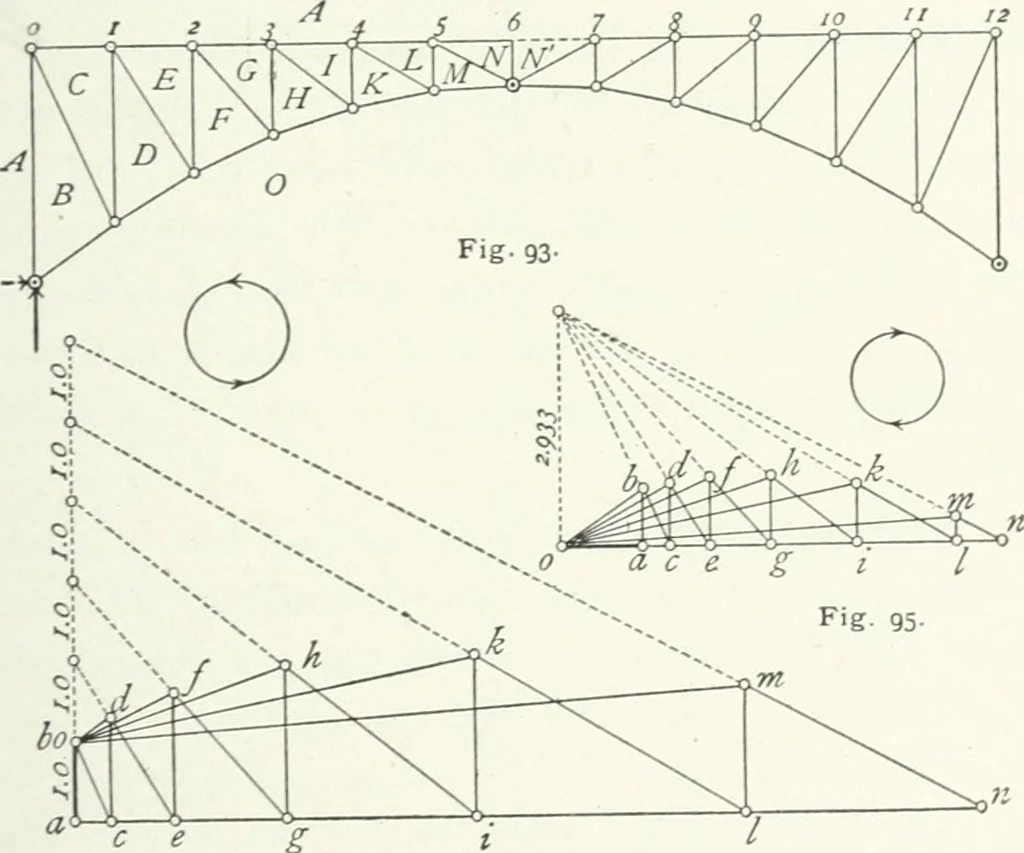

stresses given by thediagram with the corresponding panel loads. When the lowerchord is parabolic the dead load stresses may be found in asimpler manner like that for full live load to be explainedlater in this article. In the graphic determination of the live load stress in anymember it is… … Fig. 94- Let the dimensions and panel loads of the arch in Fig. 93be the same as those given in Art. 64. Let a stress diagrambe drawn for the left half of the truss under the assumptionthat this half is fixed at the right end and subject to a singlevertical force of i kip at the left hinge. The…
