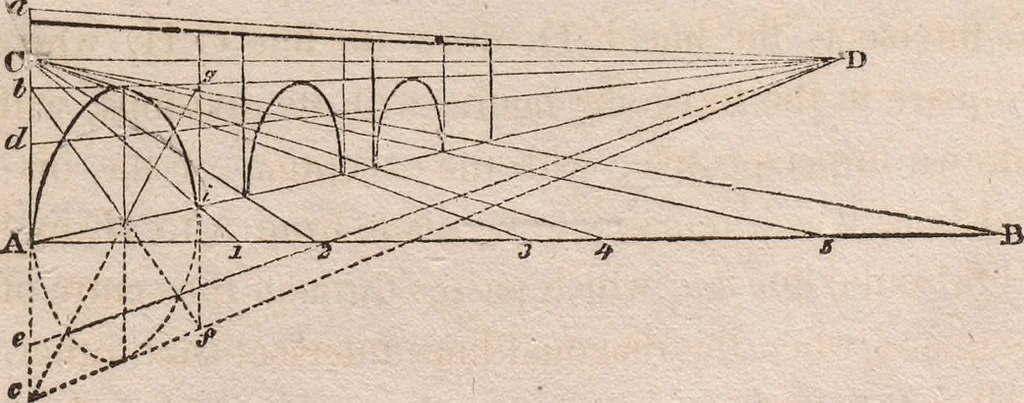

part of a circle. Let A B be the base line, C D the horizontal line, Dthe centre of the picture, and C the distance point:draw the line A a equal to the height of the bridge; thevanishing line a D, which will give the top, and the lineA D the bottom of the bridge ; next mark off thedistances 1, c2,… … perspective breadths of the arches and piers; next drawthe piers, after which nothing remains but to draw the iiiiiiiinmi«ii.iiimiiiiwii— 10 PERSPECTIVE. arches. To do this according to rule mark off on theline A a the distance from A to b, equal to the height ofthe arches, and draw the line b D…
