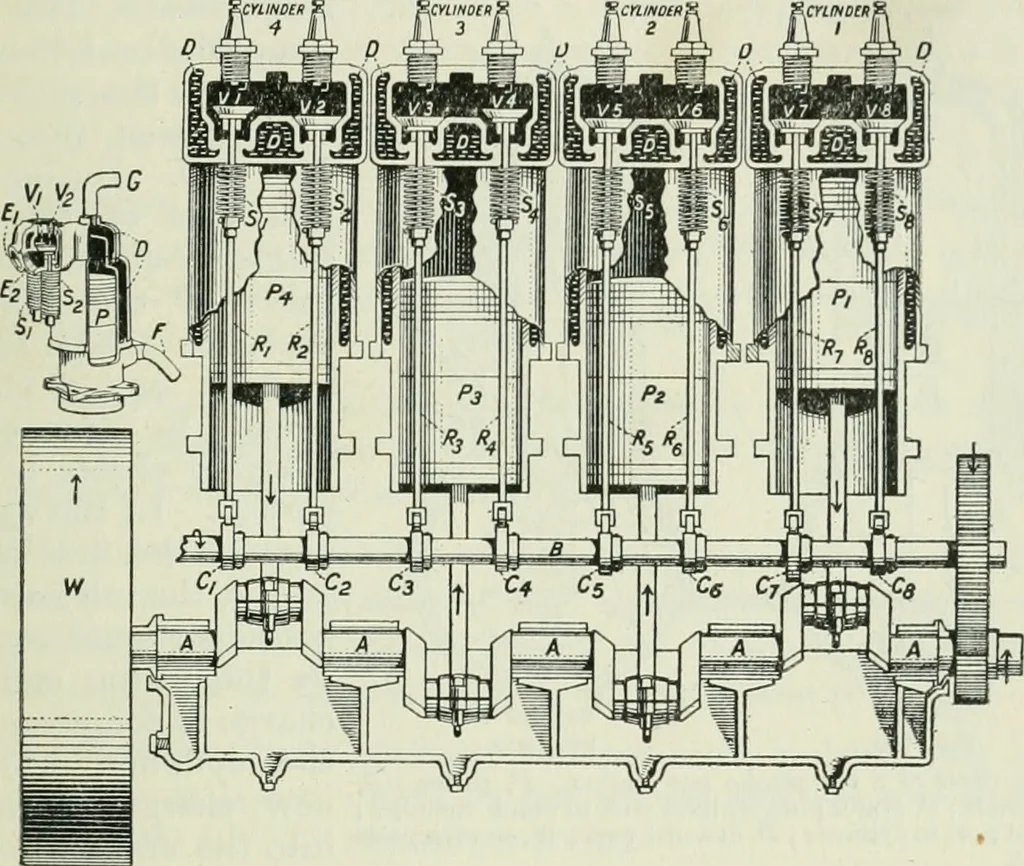

engine is accordingly described as a four-stroke, or four-cycleengine. GAS ENGINES 271 The momentum given tlie balance-wheel at each explosion servesto maintain tlie motion until the piston receives the next impulse.To cause the pressure to be moie continuous in higli-speed engines,two or more… … Fig. 29S.—The working parts of a modern fourcjlinder automobile or launch engine. A,main shaft: W, balance-wheel connected to main shaft; P,, P„, P-„ P,, pistons ; F,, F.,,Vf,, Vt, inlet valves; Fo, F^, F^, F^, exhaust valves; VJ,, /J„,etc., valve stems; 6j, S-j,etc., springs by which valves are…
