The textile industries : a practical guide to fibres, yarns & fabrics in every branch of textile manufacture, including preparation of fibres, spinning, doubling, designing, weaving, bleaching, printing, dyeing and finishing (1910)
Murphy, William S · London : The Gresham Publishing Company · leaf 145

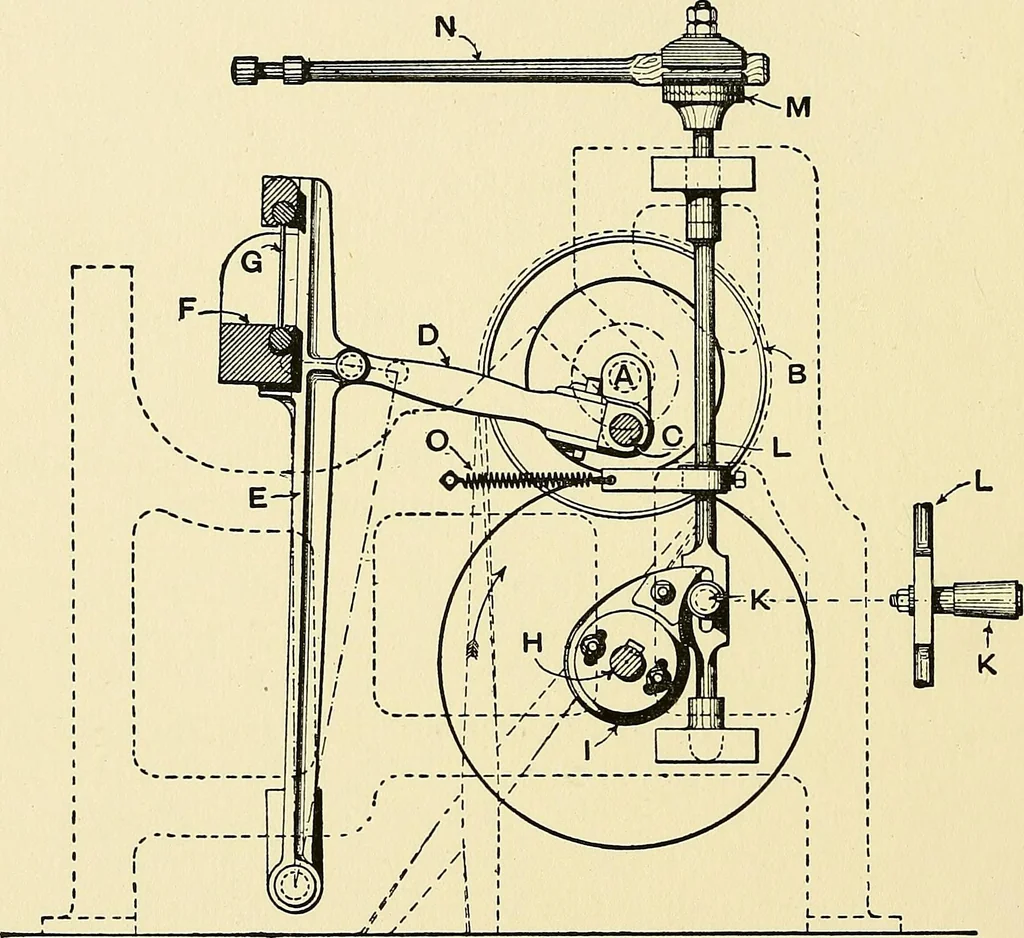

at the pick-ing arm. A flexible strap connects the picker with the picking arm, ii6 WEAVING and when at rest it is slack; if not tightened a moment before thedriving stroke, part of that force is expended upon the strap, strainingand injuring it. Even with the very best adjustment of tappets,… … Fig. 319.—Cone Picking Motion: Beginning of the Stroke A, Crank shaft. b, Driving pulley. c, Crank. D, Connecting arm.L, Picking shaft. m, Clutch. n, Picking arm. o. Spring to return n to the early part of the stroke of the latter in a gradual rate of acceleration,terminating in a decisive stroke…
Textile industry · Textile fabrics
