Draw frames and fly frames : being a practical treatise on the above machines (1898)
Thornley, T. (Thomas) · Manchester : A. Heywood · leaf 127

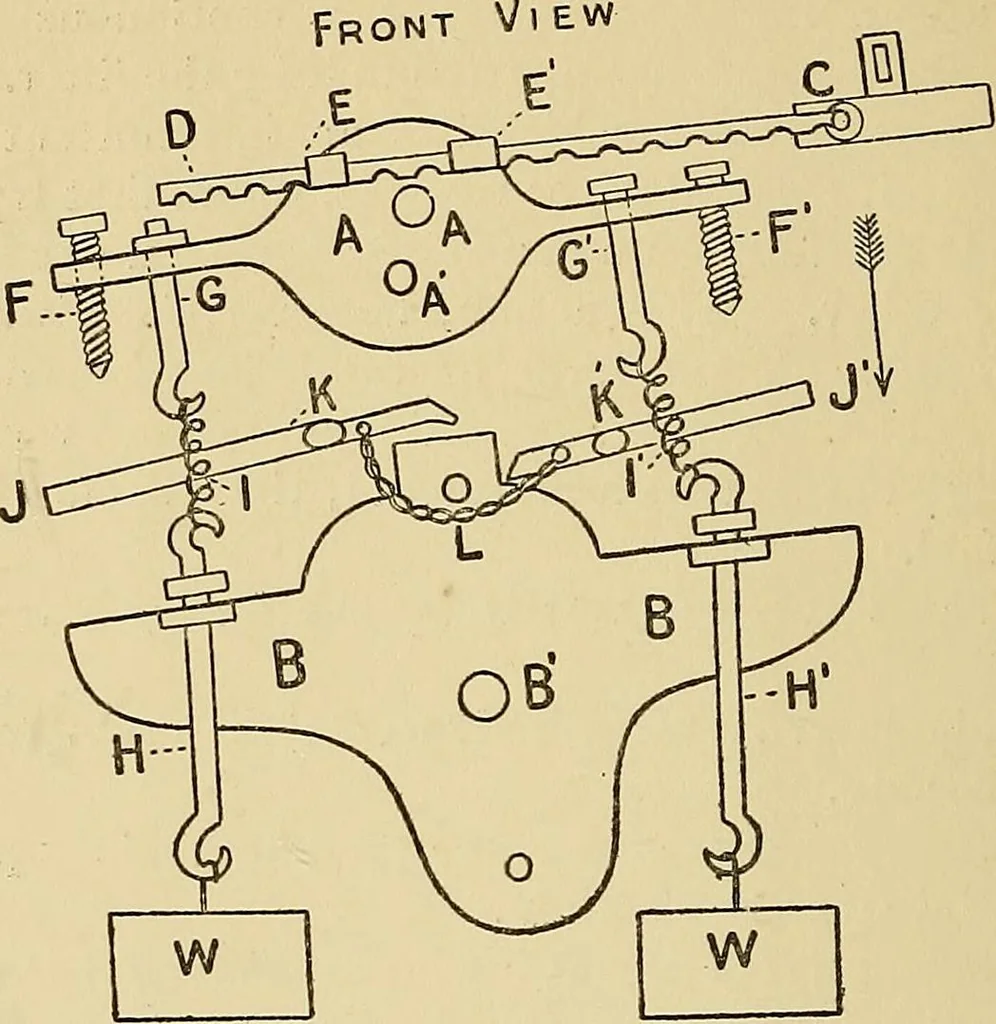

aid of drawings. It must be distinctlyunderstood, however, that these are lecture diagrams only,specially constructed in order to show the details andaction of the parts more clearly. Some of the parts are,therefore, purposely put out of their correct working posi-tion, in accordance with this… … Fig. 26, The top cradle A has a continuous rocking motion onthe stud A^ impelled by the lifter rail. The double slide Cis connected to the lifter, and partakes of its movement.The round rod, or round-toothed rack, C D is hinged looseat C to the double slide, and at the other end passesthrough the…
Textile machinery
