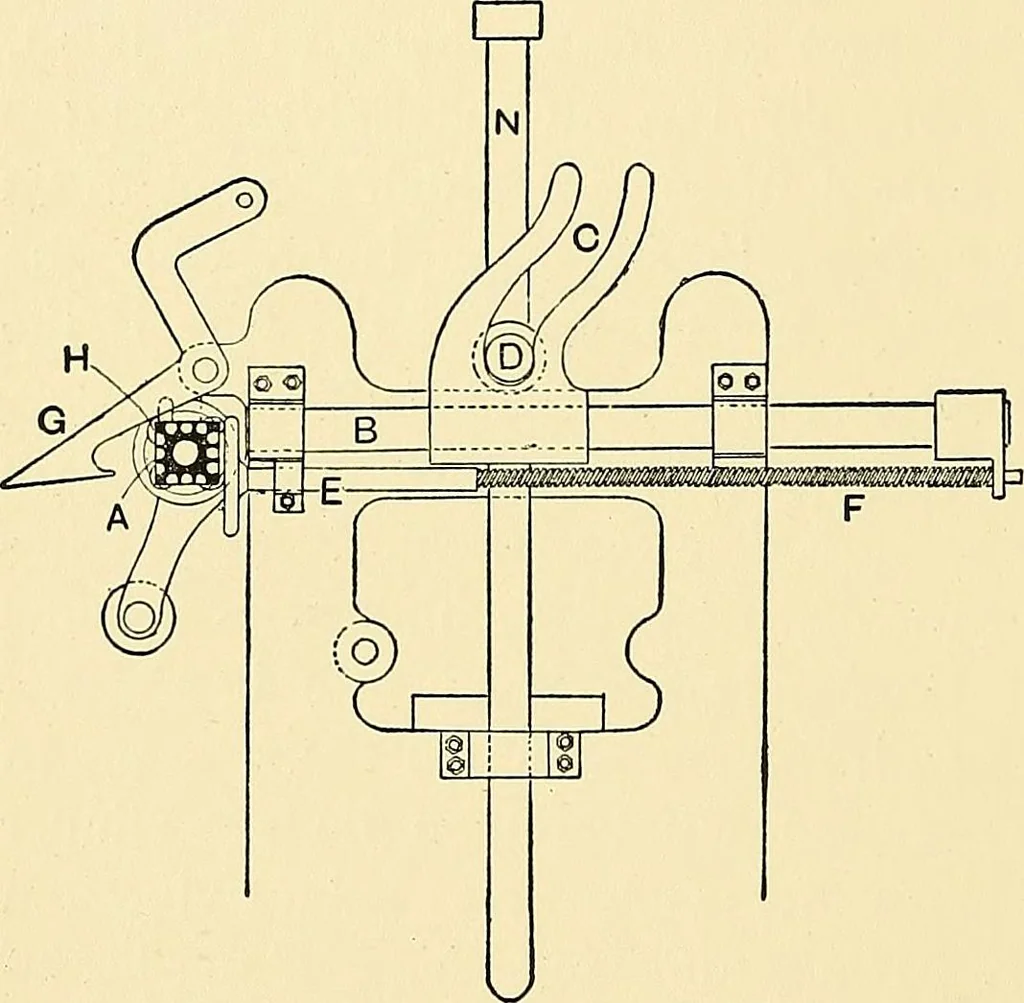

rods traversing the depth of themachine. Besides supporting the cylinder horizontally, it is thefunction of these two rods to impart lateral motion to the cylinder.A pair of slanted forks are secured upon the rods, and within theforks work a pair of bowls coming out from two vertical rods.… … Fig. 279.—Jacquard Dobby: Mechanism actuating the Cylinder THE DOBBY 47 and down by the crank and lever, the bowls impart to the forks alateral motion, and through them to the rods which act upon thecylinder. Rotary motion is given the cylinder by a hooked lever,fulcrumed on the framing of the…
