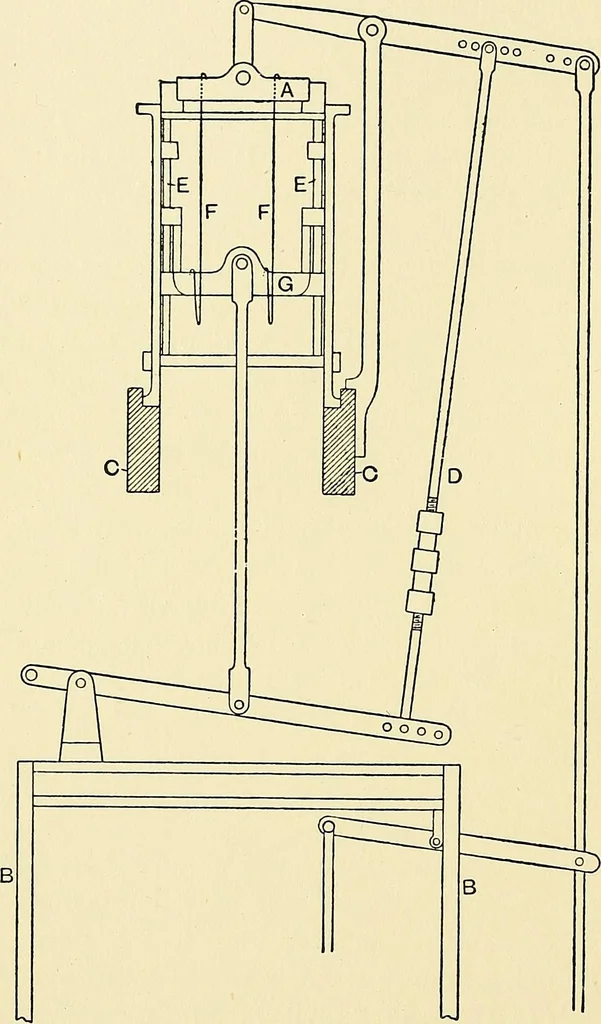

e griffe islifted the outer end ofthe lever raising itlowers, sending theshaft downwards. Asthe latter controls thebottom board, it de-scends, drawing downall those hooks whichhave not been caughtin the knives of thegriffe. As the griffe again descends, it draws up the bottom boardand closes the… … Fig. 290.—Ainleys Jacquard A and G, Griffes. B B End framing of loom, c c, Main beams.D, Adjustable connecting rod. E, Guides, f. Vertical hooks. THE JACQUARD 73 ^^ principle. The main idea consists in the employment of doublehooks and two liftinggriffes, with one cardcylinder. In structurethe two…
