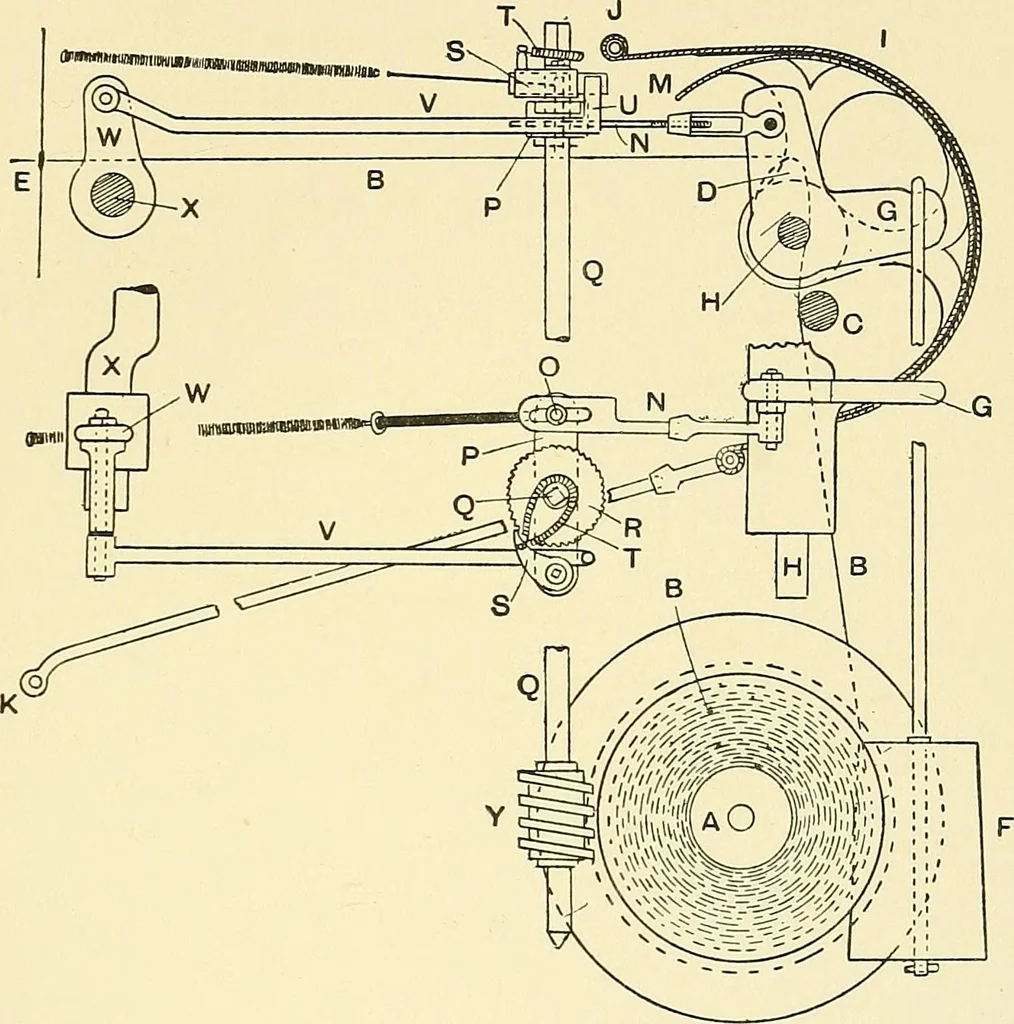

appli-ances in one. Taken in detail the mechanism is simple enough,though the parts are numerous (fig. 482). We have space for only a BRUSSELS AND WILTON CARPETS 195 general description of the motion. Attached to the end of the warpbeam is a worm wheel which works into a worm shaft,… … Fig. 482.—Small Chain Let-oif Motion A, Warp beam. B, Warp, which passes behind a steel shaft c, over the back rest D, to the mail at E. F isa weight tending to draw down the arm G of an L-shaped lever attached to the back rest D, and rocking onthe same shaft h, and thus to put tension on the warp…
