The Curtiss Aviation Book (1912)
Glenn H. Curtiss and Augustus Post · leaf 207

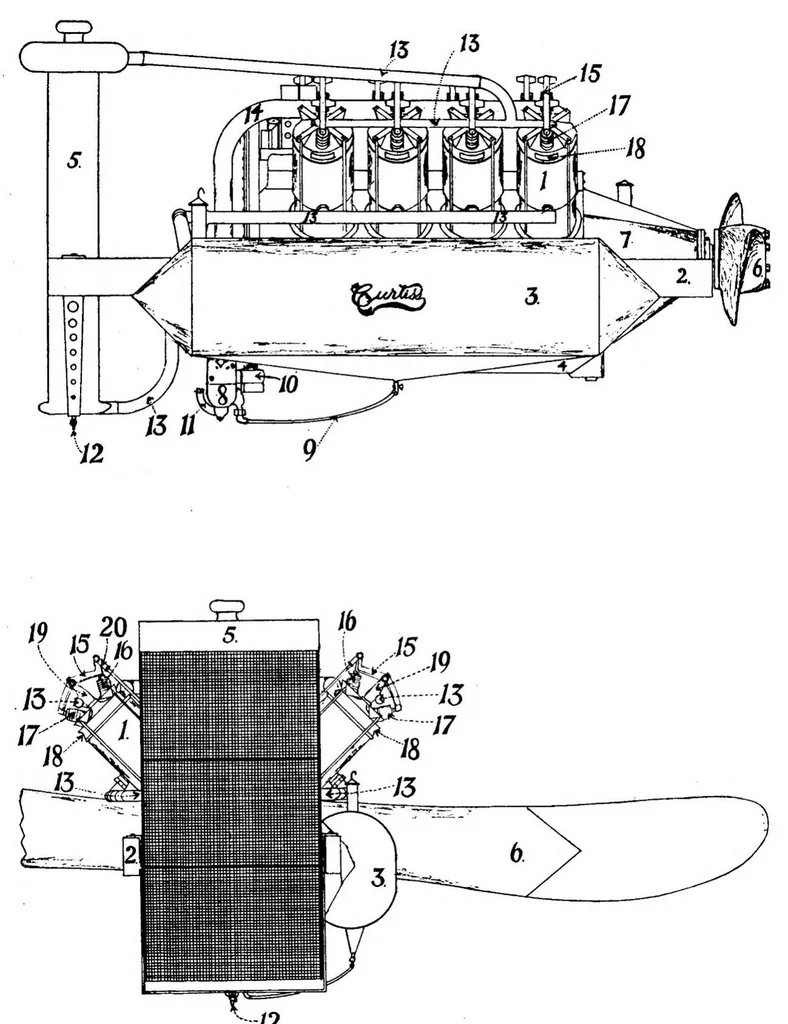

192 The Curtiss Aviation Book … Sle DIAGRAM OF CURTISS MOTOR, SIDE AND FRONT VIEWS 1. Cylinder; 2. Engine Bed; 3. Fuel Tank: 4. Oil Pan; 5. Radiator; 6. Propeller; 7. Crank Case; 8. Carbureter; 9. Gasoline Pipe; 10. Air Intake; 11. Auxiliary Air-pipe; 12. Drain Cock; 13. Water Cooling System; 14. Gas Intake Pipe; 15. Rocker Arm;…Airplanes · Aviation · Aeronautics
