The theory and practice of modern framed structures : designed for the use of schools, and for engineers in professional practice (1897)
Johnson, J. B. (John Butler), 1850-1902, Bryan, C. W. (Charles Walter), 1863-1927, Turneaure, Frederick Eugene, 1886- · New York : J. Wiley & Sons · leaf 547

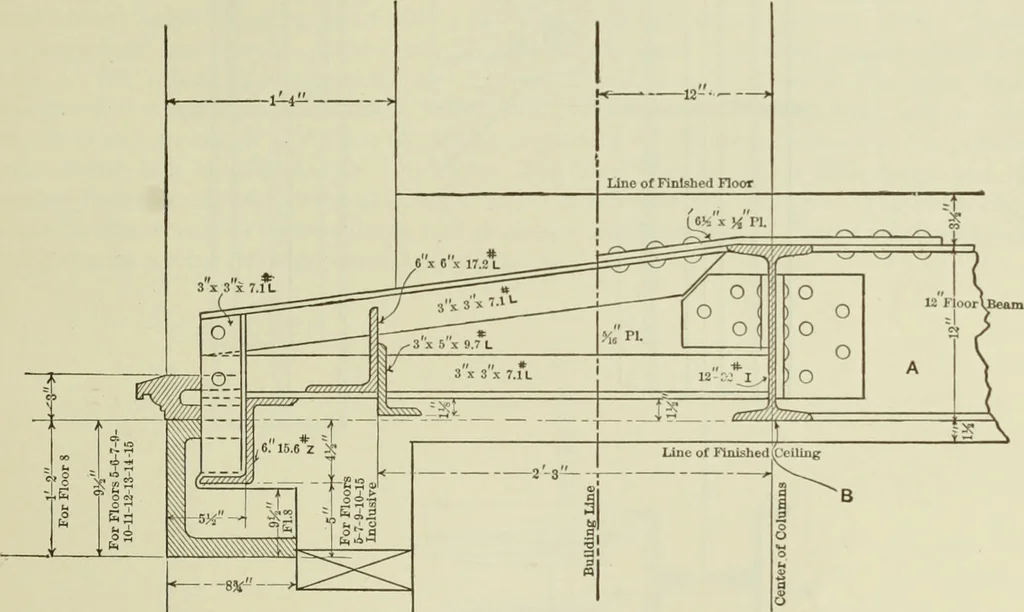

t and complicated. Many architects also have but littleknowledge of the practical ways of connecting and working metal in the shop, and the resultis that otherwise good frames are often decidedly weak in connections and details. It is there-fore very important that the general drawings and… … 3^!i Fig. 447. wherever they can be conveniently. Care should always be exercised to see that the flangesare not weakened by rivet-holes. The common connection of a beam to a column requirestwo rivets in each flange. These rivets should attach to a lug directly connected to thecolumn itself by an…
