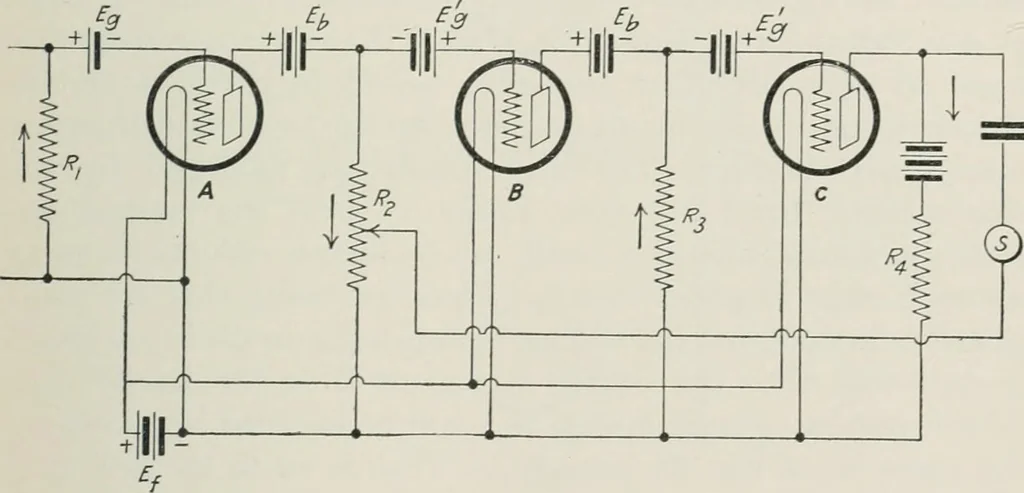

alf period during which current in Ri flows inthe direction of the arrow. This makes the grid of the tube A lessnegative with respect to its filament. The output electron currentin R2 therefore increases in the direction of the arrow. Thismakes the grid of B more negative with respect to its… … Fig. 145. through »9 is in phase with the current In 7?3, and since it mustflow through part of R2 the potential of the grid of B is increasedover that occasioned by the space current in tube A. It will beapparent that in order to have the phase relations right, the outputof one tube must be…
