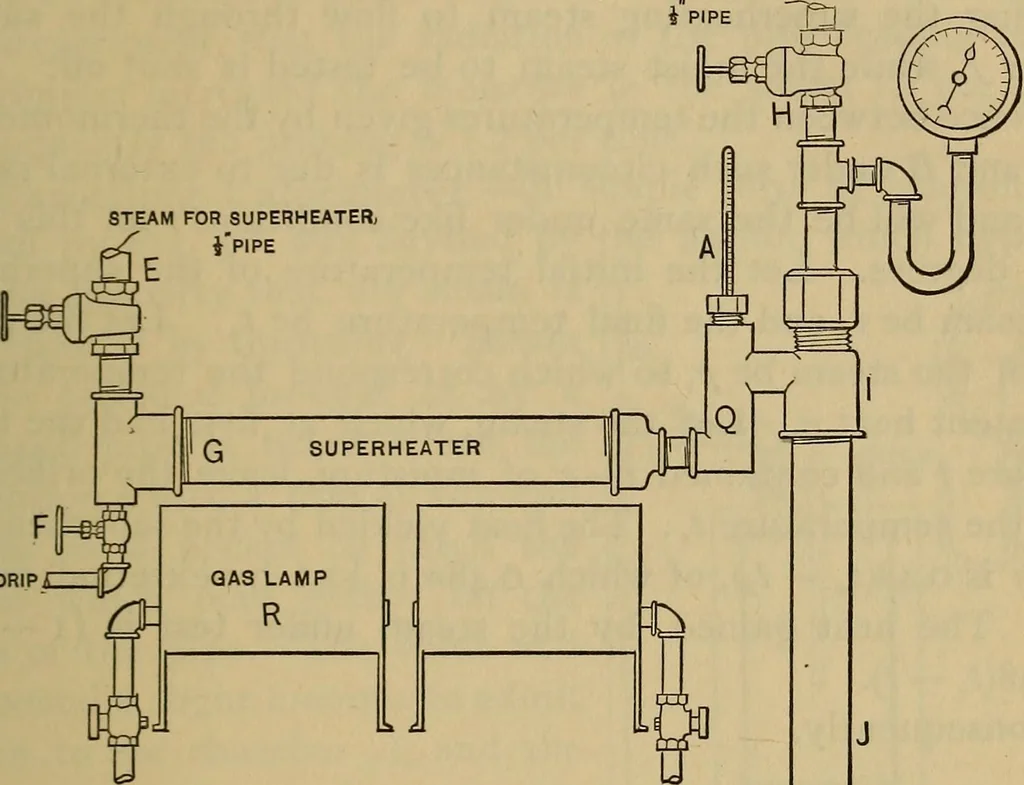

ace condensercan be determined by equation (282) or (283), except that theexternal radiation cannot always be satisfactorily determined. Barrus Superheated-steam Calorimeter.—A form ofcalorimeter devised by Mr. Barrus is shown in Fig. 55, which TESTING STEAM-ENGINES. 235 determines the quality of… … Fig. 55. M. A separate stream of steam comesin by the pipe E^ is strongly super-heated by gas lamps in the super-heater G, passes around the tubes ofthe superheater y, and flows out of anorifice at TV of the same diameter asthat at M. Temperatures are takenby the thermometers at ^, ^, and C\and the…
