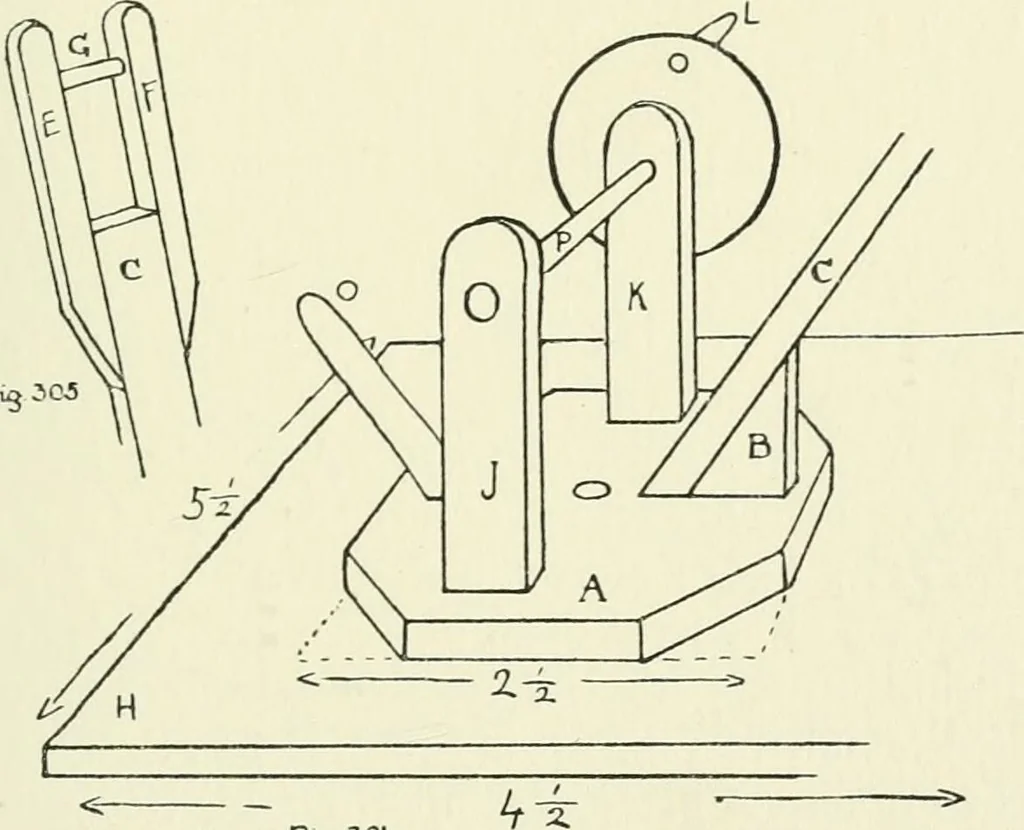

r end. CHAPTER V A CRANE A Crane. Foundation, Arm, Pulley. Cut a piece of wood about5| inches by 4| inches (h in Fig. 304). Cut a second piecea square, A, side 2| inches. Cut off the comers. This forms astand on which the crane, etc., is fastened. Cut a piece of strip wood, ix|x8. This is the arm… … Pig 30V in length; shape like e and f in Fig. 305. These can now beglued and nailed to the arm c, projecting an inch beyond. A wheel for the pulley is cut from a round rod about | inch indiameter. If a groove is to be made round the circumference, the wheelshould be about j to | inch thick. The…
