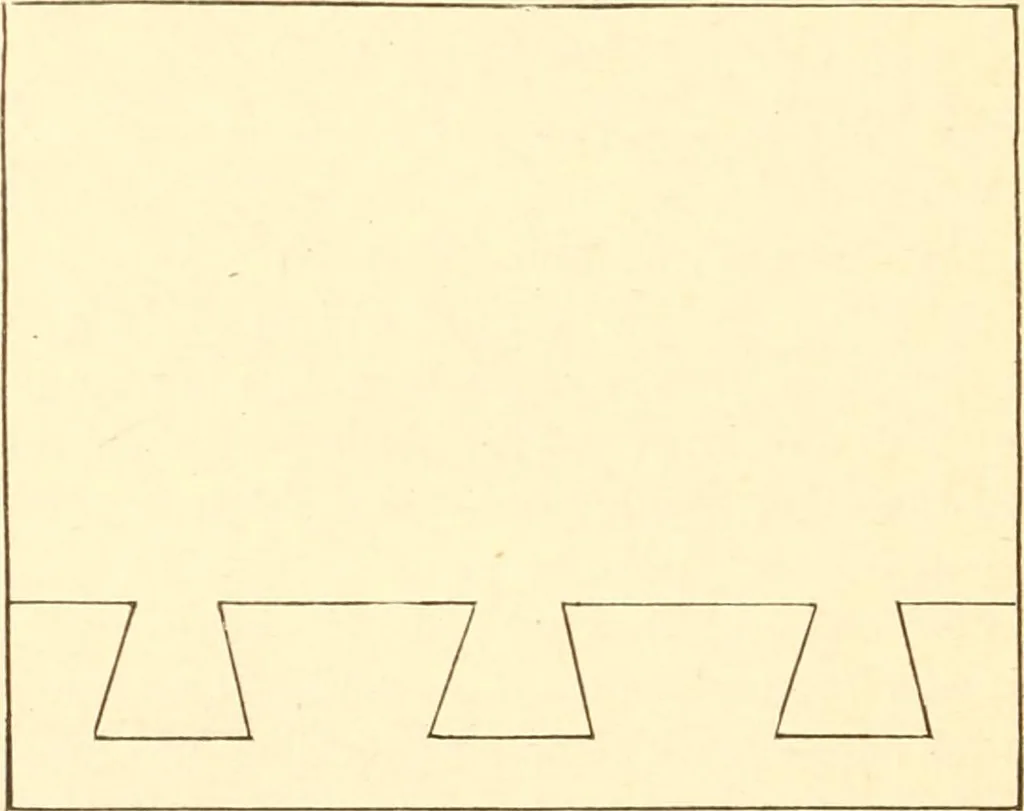

ut away. Pare 50 MANUAL TRAINING strictly to the center of all lines. Then the piece is to be sub-mitted to the instructor for his inspection, and to be cut intotwo parts and put together. EXERCISE NO. 12. Exercise Xo. 12 is a dove-tail mortise and tenon jointordinarily used by cabinet makers on… … Fig. 81. fi inch bv 3^ inches by 4 inches. The other to be 5^ inchby 35^ inches by 4 inches. Xext scjuare one end of eachpiece and on the piece 3^^ ^1 thick mark a line on sur-face No. 2 as a guide. Square this line around the piece.Xext set the marking gauge at 5-16 inch and gaugfe aline on the…
