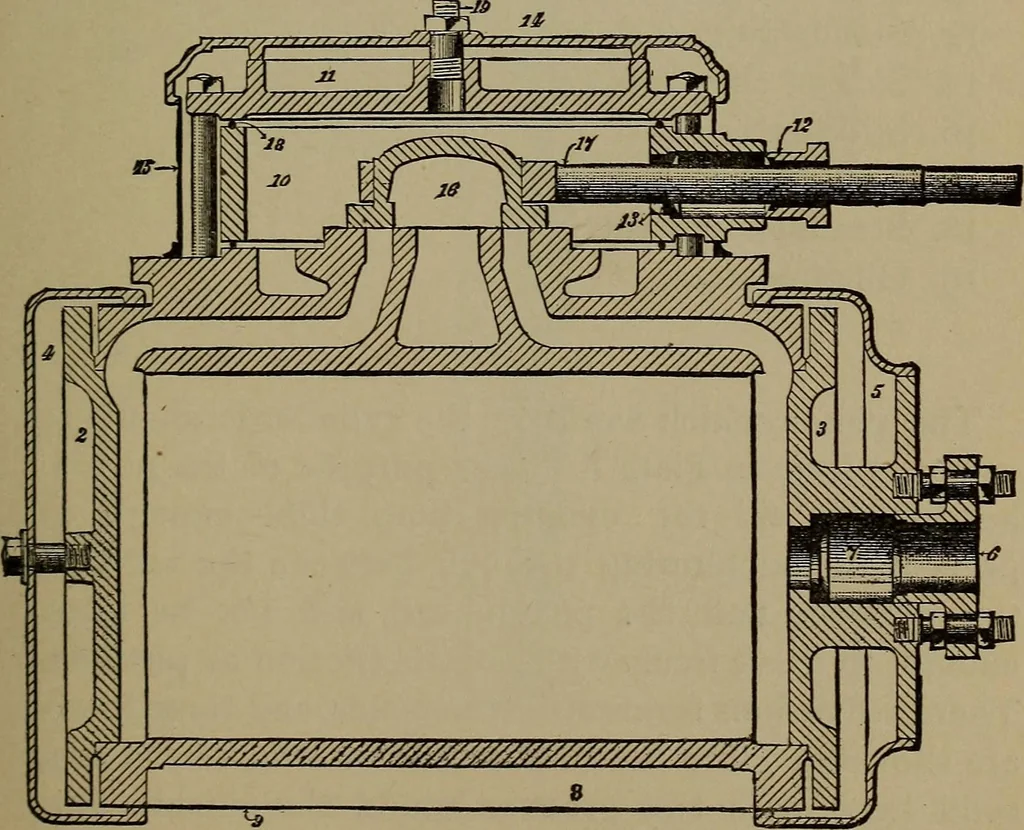

f cab. 102. Hand-holds of cab. INTRODUCTION. XXlll 103. Front door of cab. 104. Water-gauge. 105. Stand for oil-cans. 106. Drip for gauge-cocks. 107. Injector-valve. 108. Oil-cup for oiling main valves. 109. Handle for opening valves in sand-box.no. Handle for opening front damper,in. Bell-crank… … y/////////////////////^^^^^ Plate D xxiv IN TROD UC TION. Plate D gives a cross-section of the cylinder and steam*chest. The principal parts are; 1. Cylinder. 2. Front cylinder-head. 3. Back cylinder-head. 4. Front casing-cover. 5. Back casing-cover. 6. Cylinder-gland. 7. Cylinder-gland packing. 8.…
