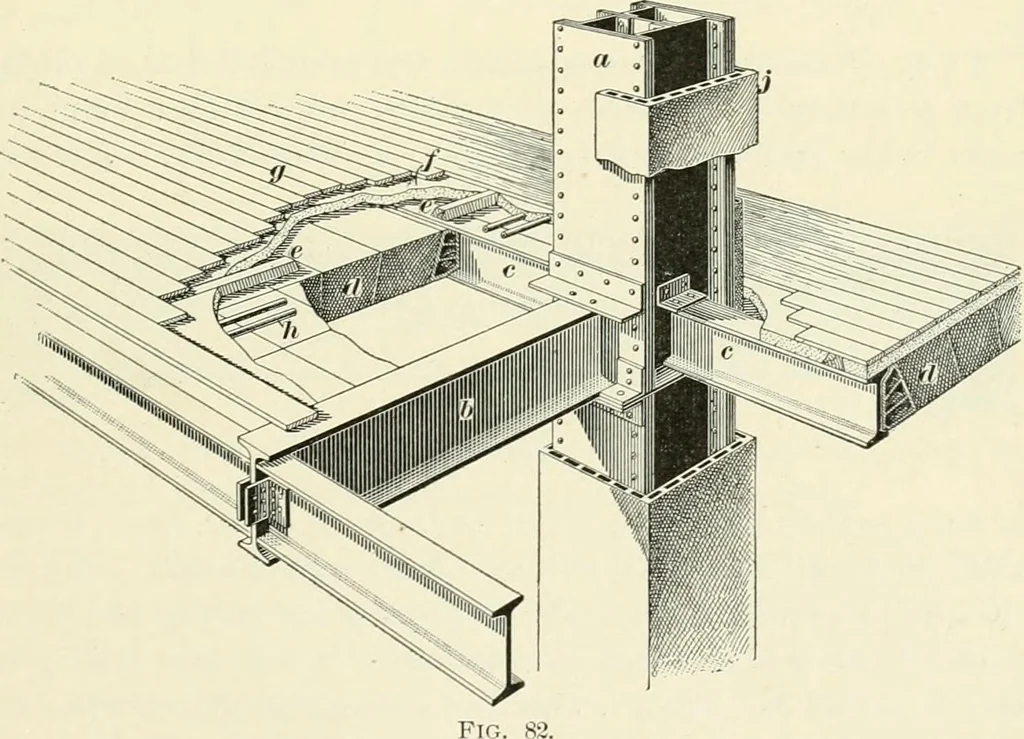

ry, but this is a practice not to berecommended. When the beams are very deep, tile of aless depth is sometimes used, and the filling consists of par-tition tile or specially made fl-shaped tile. Oflice buildings frequently have a great many movablepartitions, to suit the requirements of tenants.… … 172. Fig. 82, representing the floor construction in alarge Chicago building, well illustrates the foregoing descrip-tions. At a is shown the steel column, formed of Z bars and 100 MASONRY. §8 plates, carryinof the girder h, and the floorbeams r; at ^ arethe tile arch blocks; at l\ the 2x4 nailing…
