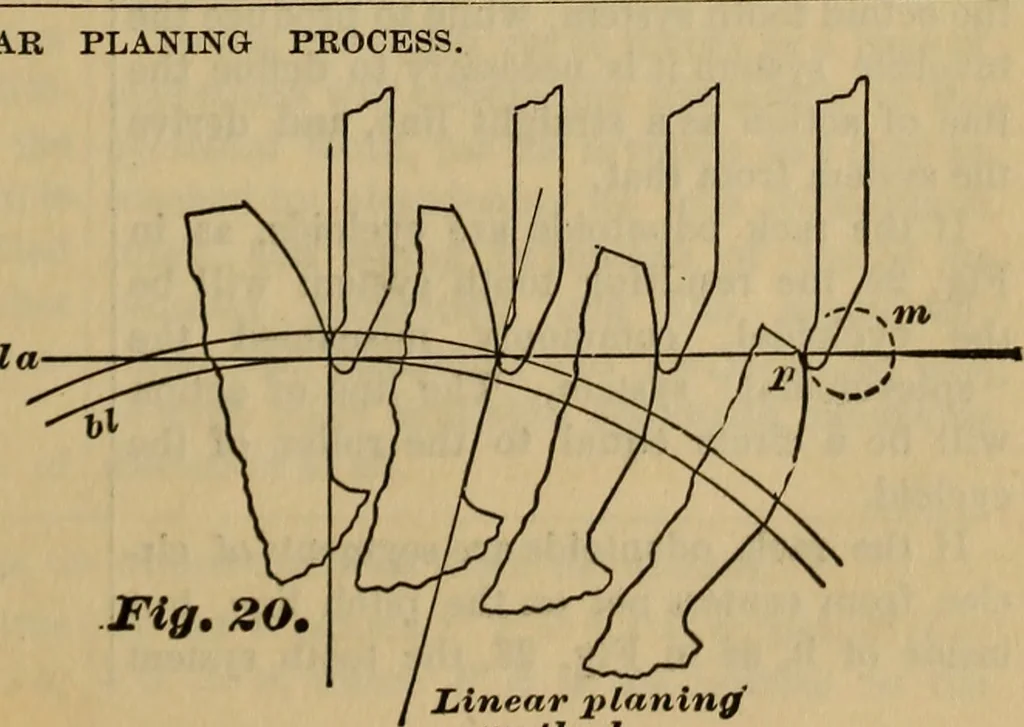

ldingmethod 29.—LINEAR PLANING PROCESS. A second planing process, quitedistinct from the molding process of(27), IS founded upon the fact thatthe tooth curves are in contact at asingle point which has a progressivemotion along the line of action. Therefore if a single cutting pointp. Fig. 20. is… … JFig. 20. Linear planinffmethod 12 Particular Porms. the involute tooth, the path of the cuttingpoint being the straight line I a, and its speedbeing the speed of the base line b I, When the cutting point follows the circu-lar line of action with a speed equal to thatof the pitch line, it will…
