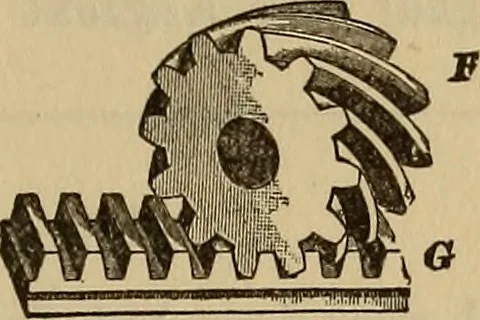

th a milling cutterthat is made for a standard spur gear. Agear of 8 pitch and 45° angle should have an addendum of ^^ = .089. If the addendum is determined by the truepitch when the angle is considerable, thetooth will be long and thin. Fig. 86 showsthe normal pitch section of a rack to runwith a… … Normal Rack.Fig. 86. Spiral Rack,Fig* 87.
