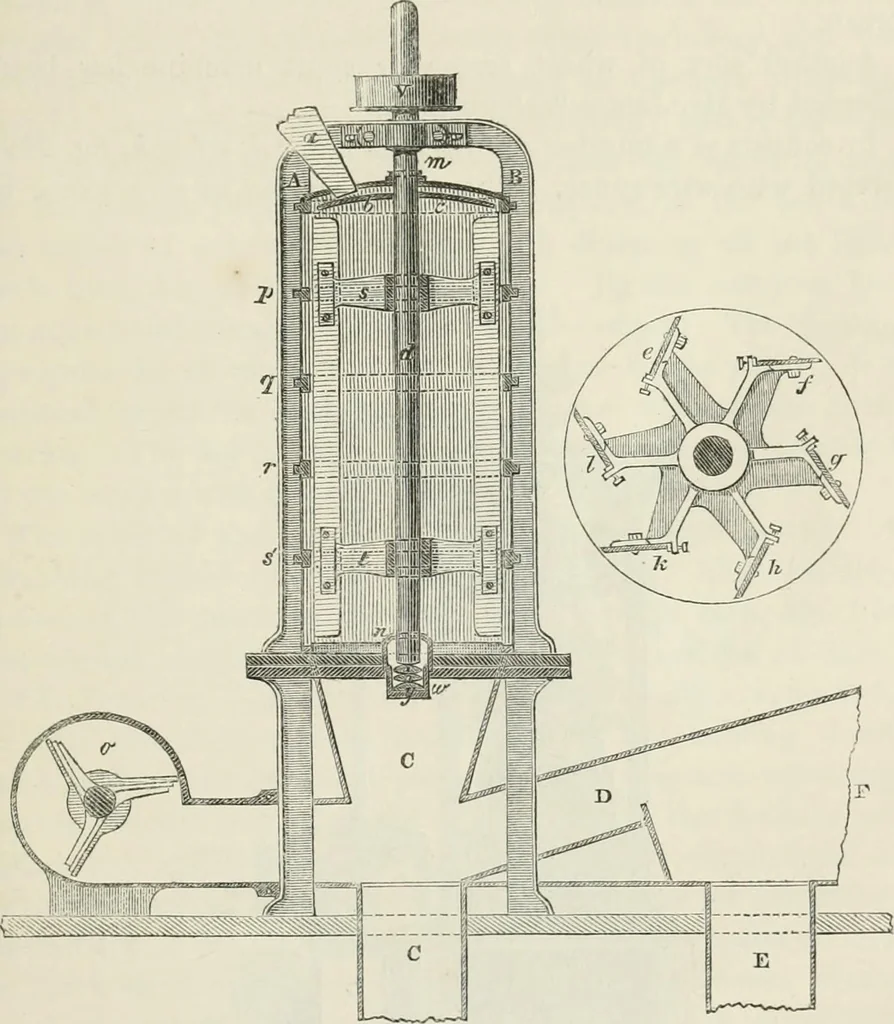

s e, f, g, h, k, /, at a velocity of 450 to CORN MILL MACHINERY. 145 500 revolutions per minute, throws the corn to the extremityof the cylinder m n, where it comes into contact with thebeaters, which, together with the fan o, as the corn passesthrough, take away the greater portion of the dust and… … cylinder m n is 1^ V diameter, by 4 6 long, covered with 6 by 8wire gauze, and is surrounded at intervals of 9 inches by rings VOL. II. L 146 ON COKN MILLS. of iron p, q, r, s. Inside the cylinder two arms of cast iron sand t are placed, and bolted on these arms are six pieces ofiron, as shown in…
