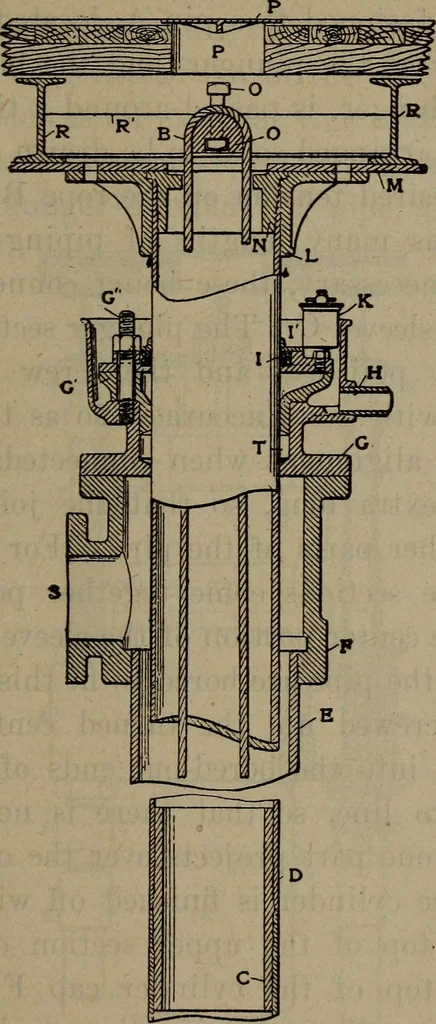

ater passes outthrough the valve B; hence^ the bottom limit valve stopsthe descent of the car by stopping the escape of waterfrom the cylinder. Construction of Cylinder.—The construction of the upperend of the cylinder is shown in Fig. 419. This drawing,which is a vertical sectional elevation of… … ^^ 1 V/ |^__A II . 1 Fig. 419 1004 Steam Engineering reinforcing the plunger, a steel cable B is strung inside,both of its ends fastened to a pin A, located some distancebelow the center of the plunger, and the loop or bight, atthe top of the plunger, is passed around a tightening block0; this…
