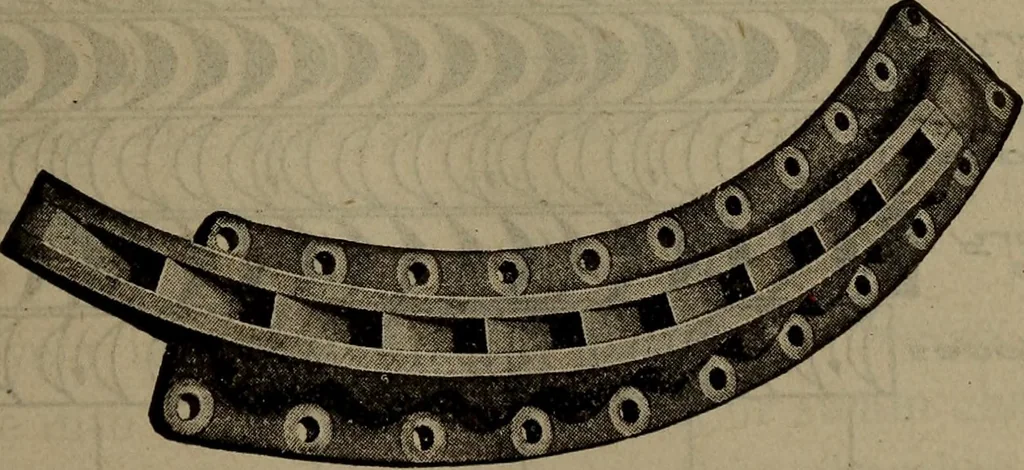

stationary buckets for curtis steam turbineFig. 256 … Fig. 257 NOZZLE Fig. 257 shows a nozzle diaphragm with its variousopenings^ and it will be noted that the nozzles are set atan angle to the plane of revolution of the wheel. 616 Steam Engineerihg Fig. 258 is a diagram of the nozzles, moving blades andistationar}^ blades of a two-stage Curtis steam…
