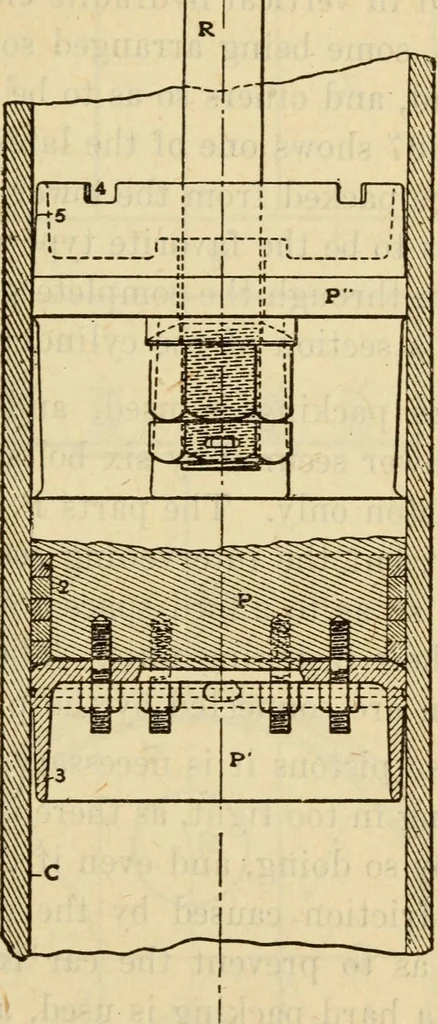

hat in case thetank pressure should fail, the flow of water past this clear- 960 Steam Engineering Fig. 396 ance is retarded sufficiently to prevent a dangerous speedin the descent of the car. Hydraulic Elevators 961 When the valve is moved in either direction to set thecar in motion^ water passes… … Fig. 397 into 14, as indicated by the arrows. In this way sufficientopening around the throttle valve is afforded even whenthe port of the operating valve piston V is only slightlyopen. The passages 13 and the connection between theports 14 and 10 are not easily made out from Pig. 395, but 962…
