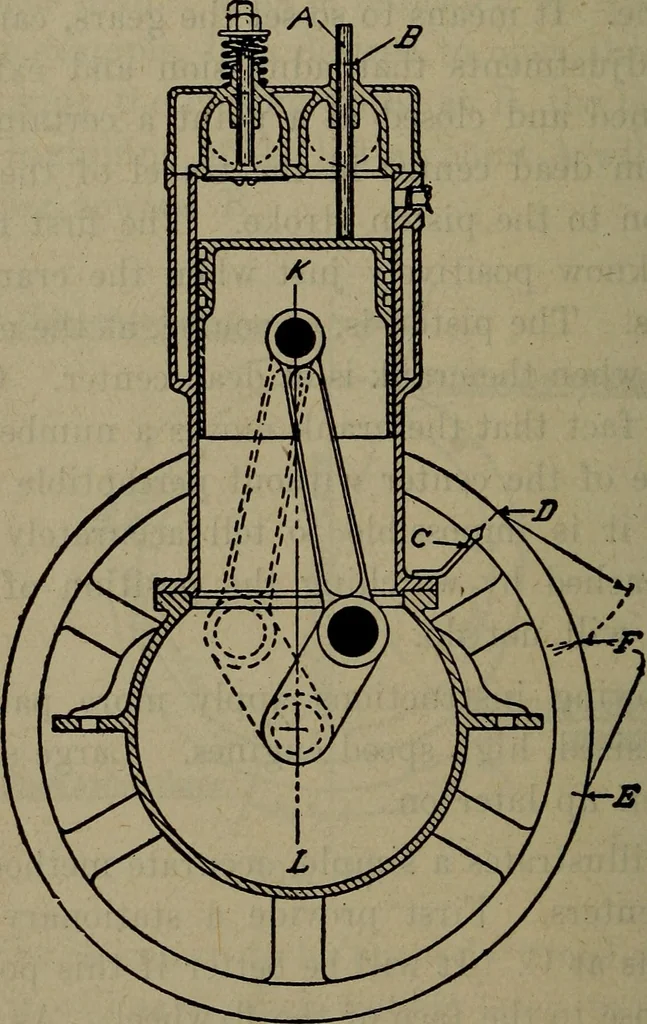

the head letting;it rest firmly against the piston; make a mark on the faceof the flywheel at D as indicated by the stationary pointer,.IC; also make a mark, B, on the rod, A. Now turn the: 734 Steam Engineering crank to the other side of center as shown by the dottedlines; when the mark^ B, on rod… … Fig. 305 as indicated by the pointer C. As marks D and E are atequal distances on each side of center, it follows that inbisecting the distance from D to E, as shown, and bringingthe central mark, P, to the fixed pointer, C, we will bringthe crank to the exact dead center for that end of the…
