Treatise covering operation, defects and remedies of the locomotive, Westinghouse and New York air-brake, also questions and answers to first, second and third year's progressive examinations (1917)
MacDonald, J. R. [from old catalog] · [Chicago] The author · leaf 183

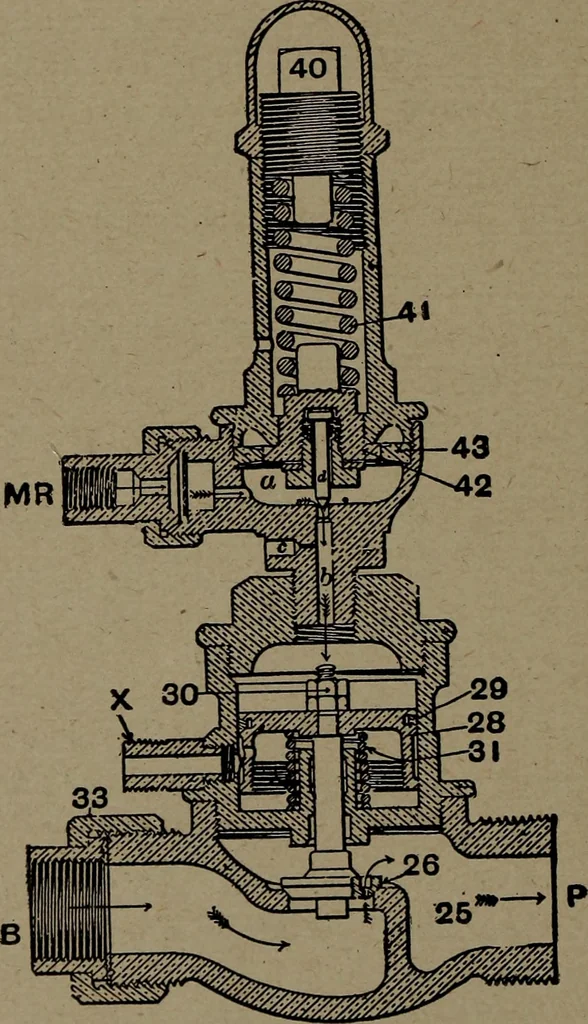

adjusting wheeland quick turn screw; whereas, theother types must be adjusted by a wrench. Q. 186. Is there any difference between the doublepressure feed valve used with the H. 6 brake valve and thereducing valve or C. 6 single pressure used in connectionwith the independent brake valve ? A. Only… … Fig. 1. Type S Single Top Steam Compressor Governor, Closed TYPE S SINGLE TOP GOVERNOR Fig. 1 shows a view of the single type governor in closedposition. By a careful study of this governor the readerwill be able to understand any and all governors, as theyall operate alike. Main reservoir pressure…
Locomotives · Westinghouse air-brake · New York air-brake
