Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 548

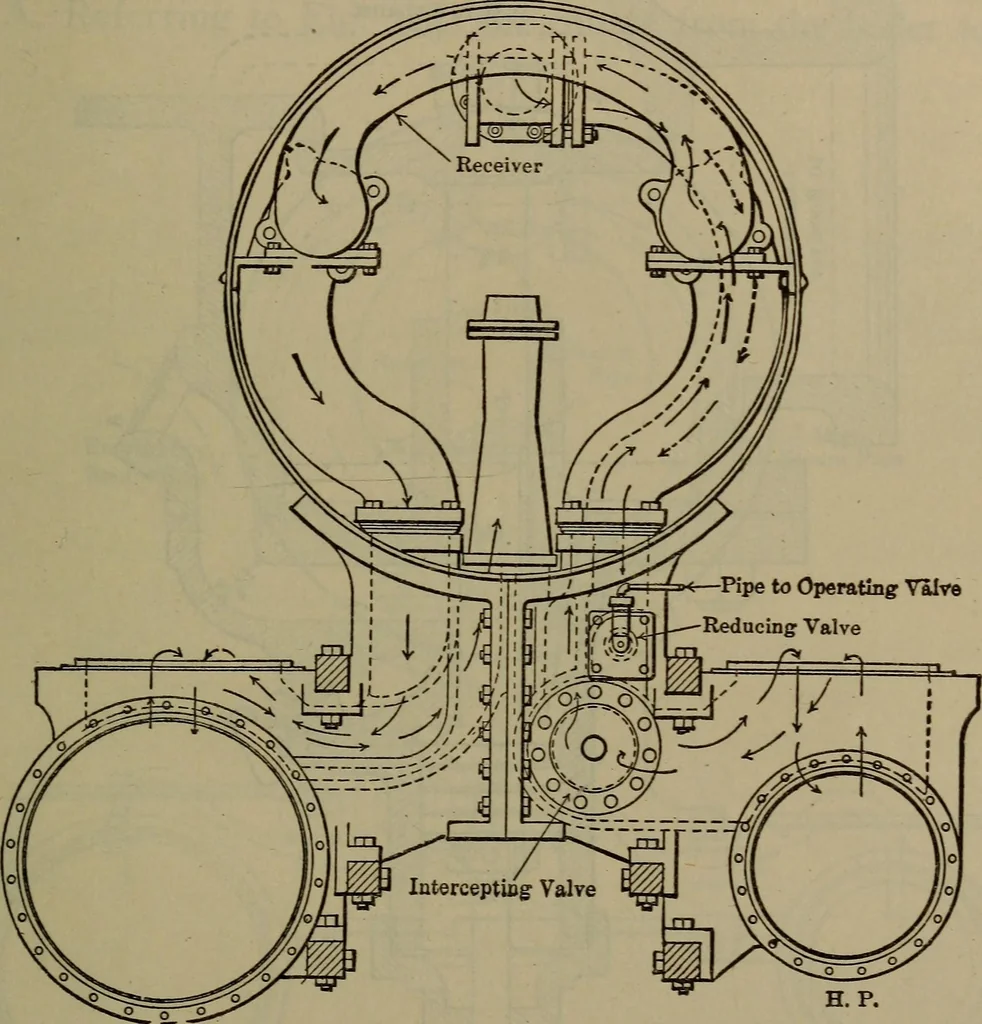

the receiver,and as E has more area than the shoulder of D, the main valve/ is moved to the right, the H. P. exhaust opened to the re-ceiver and the openings F closed by the large part of D.Q. What is the Hughes or Lindner starting valve? LINDNER STARTING VALVE. 533 A. There is a cock by which… … L.P, Fig. 342. Baldwin Two-cylinder Compound. small ports, which when the valve covers the end port, aftercut-off, connect that end of the slide valve with the exhaustside of the valve and hence with the receiver; so that low-pressure steam is let into that end of the high-pressure cy-linder which…
Locomotives
