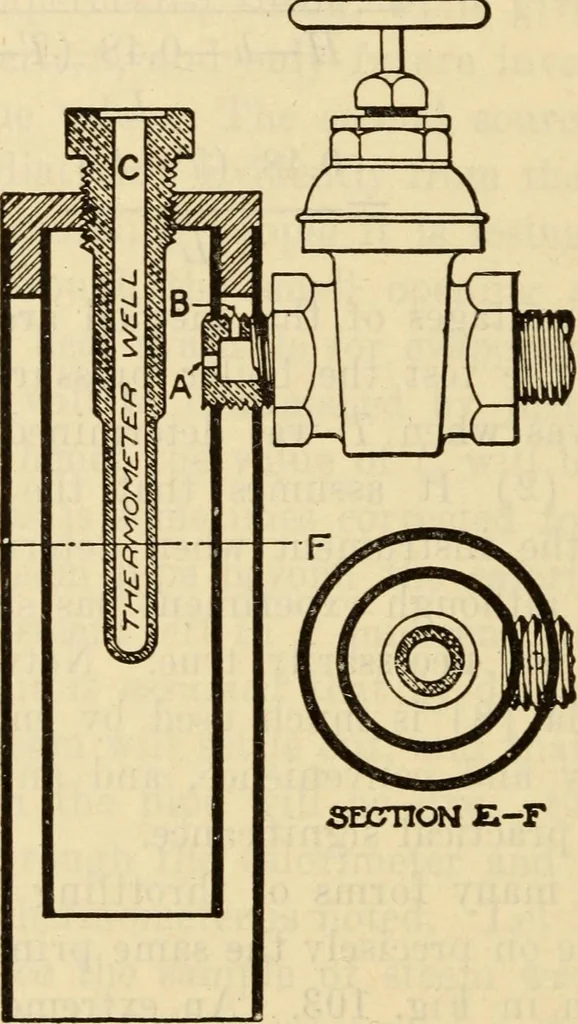

mos-pheric pressure, and its temperature at this pressure ismeasured by a thermometer placed in the cup C. To pre-vent radiation losses the annular space between the two 328 Steam Engineering cylinders is used as a jacket, and is supplied with steamthrough the hole B. The limits of the throttling… … Fig. 104compact throttling calorimeter sufficient to evaporate it, and superheat the steam thusgenerated. Separating Calorimeter. The separating calorimeter(Fig. 105) mechanically separates the entrained waterfrom the steam and collects it in a reservoir, where itsamount is either indicated by a…
