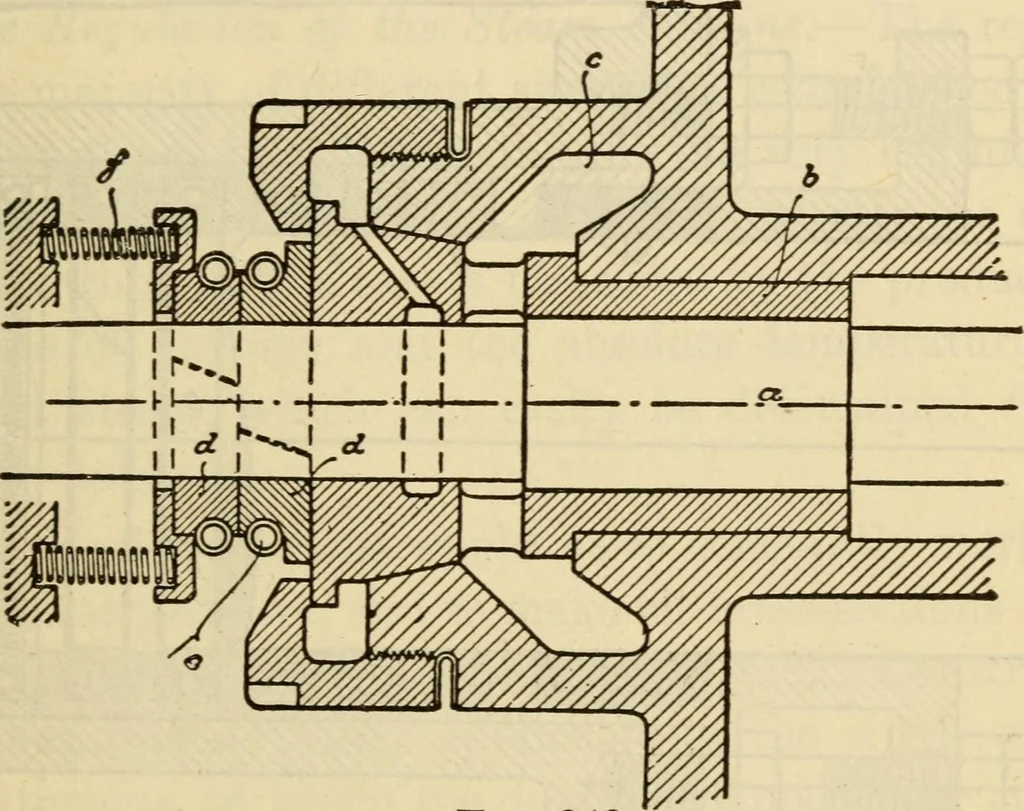

e loss is greatly decreased. _ The Steam Turbine 589 It also seems to have a favorable influence when the steamin leaving this narrow space flows radially inwards, that is,it helps to overcome its centrifugal force. Fig. 240 shows the stuffing box of a Schuh turbine. Noprovision is here made for… … Fig. 242 Fig. 241 shows a stuffing box by the same designer, builtof rings, in which the inner rings are loose, but are madewith a neat fit. The Bateau stuffing box is shown in Fig. 242. Themain part consists of the shaft, a, enclosed by a close fit-ting box b, of suitable metal. The steam leaking…
