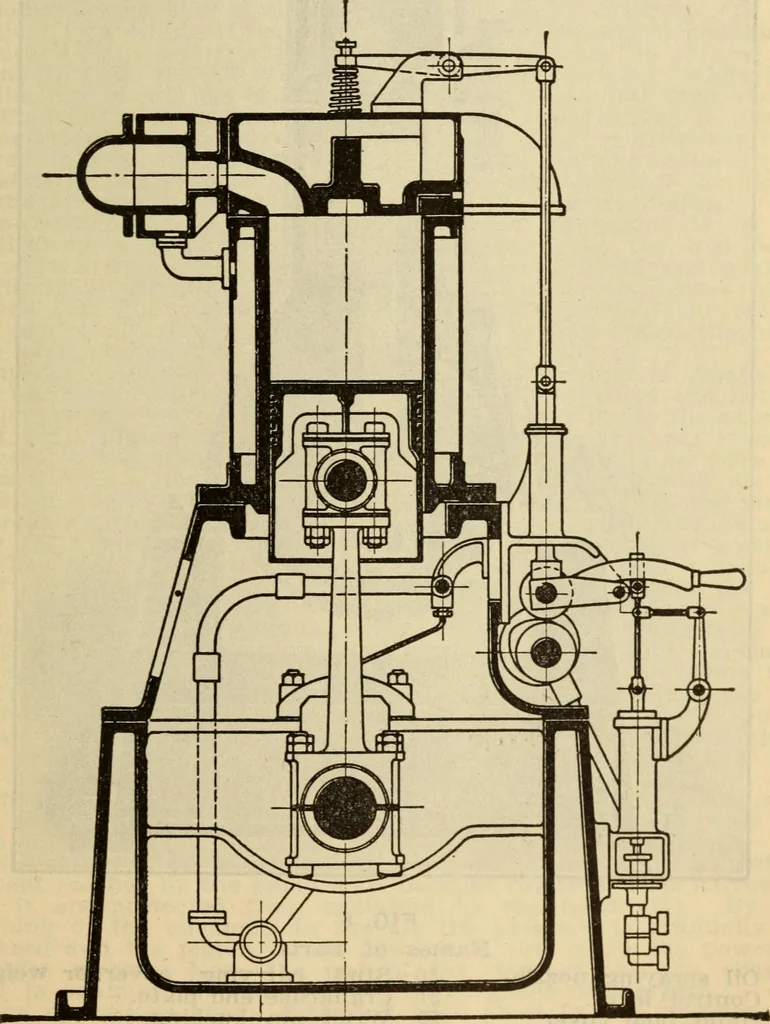

of the injection pump is used for this purpose,the conduit u serving to transmit this pressure to the pilot valve S.Horxsby-Akroyd Oil Engine.—In this engine, a sectional view ofwhich is shown in Figure 4, the oil is first introduced in liquidform into the vaporizer shown at the back of the… … FIG. 5 Hornsby-Akroyd vertical engine. ^ 810/ Steam Engineering
