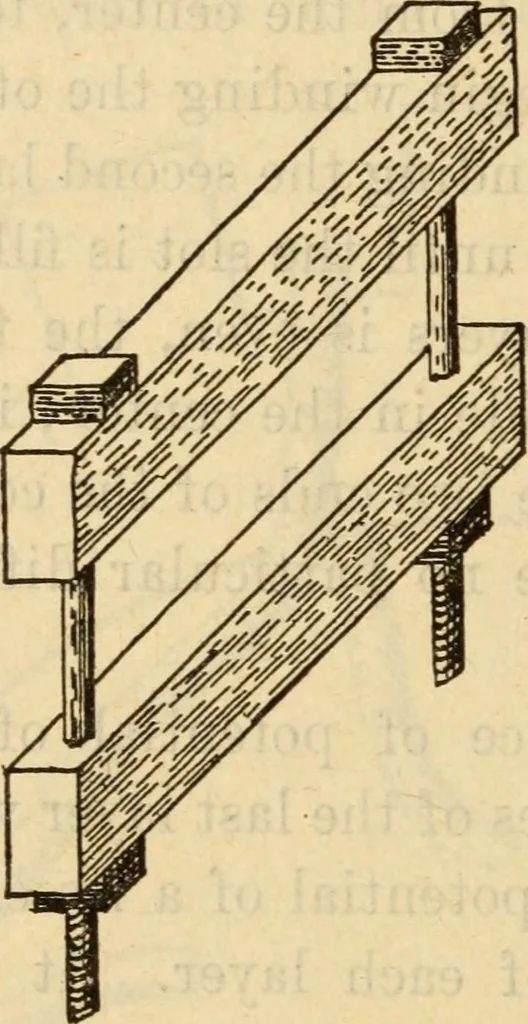

e on the other wires, and will gradually forceits way down. 1188 Steam Engineering If the armature to be wound, has no slots, a few clamps(Fig. 532) will serve to hold the wire in place while a coilis being wound. Before starting the winding, tape should be laid on thearmature, leaving it long… … .Fig. 532 the wires of an armature, whether dynamo or motor, is attimes very severe, and if there is any flaw it will surelyshow itself. In the case of fine windings, each layer as it is put inplace should be thoroughly soaked with shellac. No cur-rent, except of a very low potential from a small…
