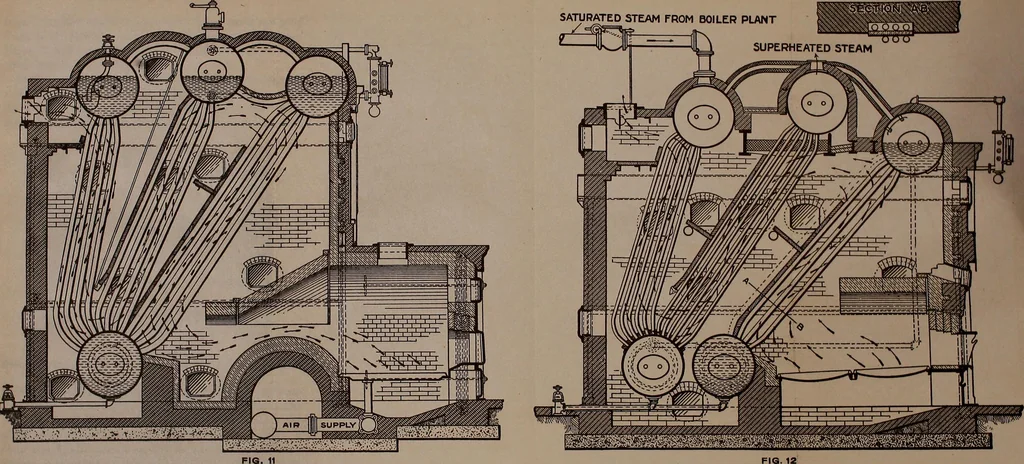

ing is so clearly shown in Figures 11 and 13that an extended description is unnecessary. Xo specialshapes or other material not found in open market are need-ed. Any necessary repairs to the brick work can be madewithout disturbing the boiler connections. In the design ofthe Stirling furnace it… … FIG. 12 SECTIONAL SIDE ELEVATION OF THE STIRLINQ INDEPENDENTLYFIRED SUPERHEATER. Stirling Water Tube Boiler 23 large triangular space between boiler fronts tubes and muddrum is available for a combustion chamber, and for instal-lation of sufficient grate surface to meet the requirementsof the…
